Specifications

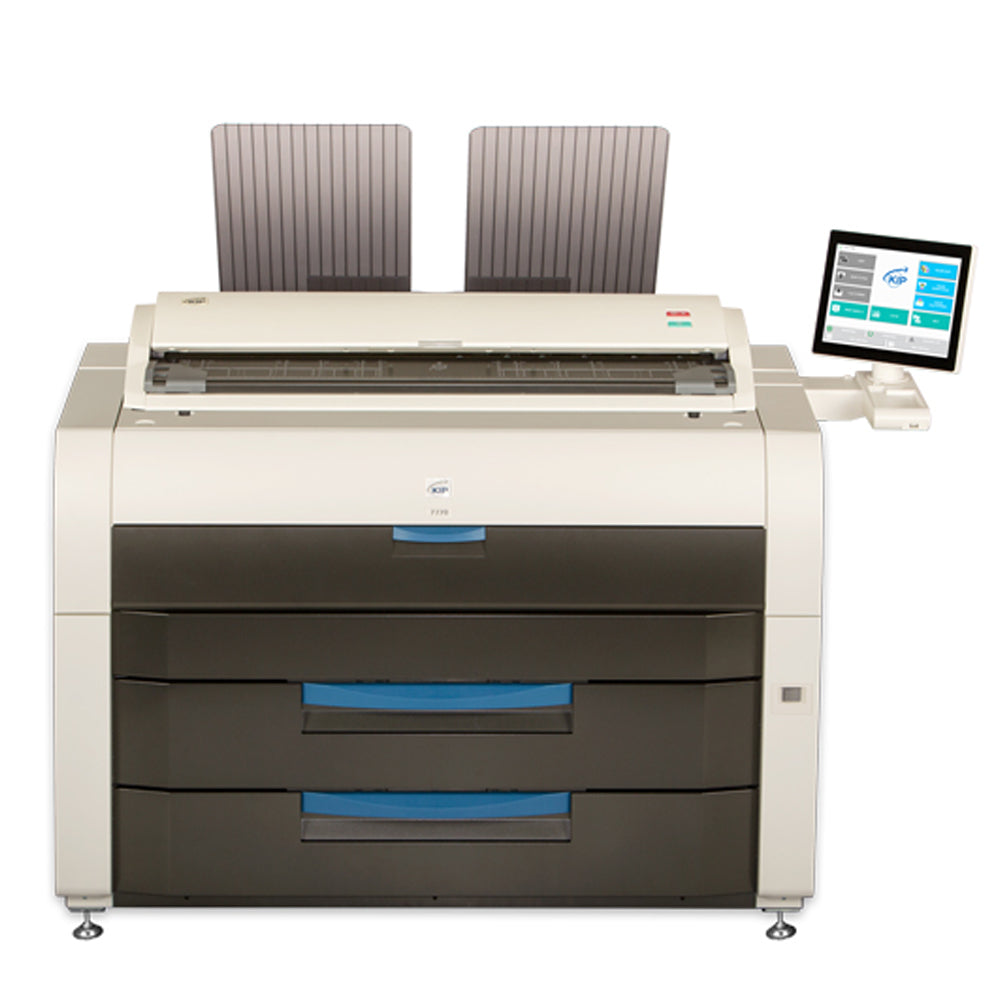

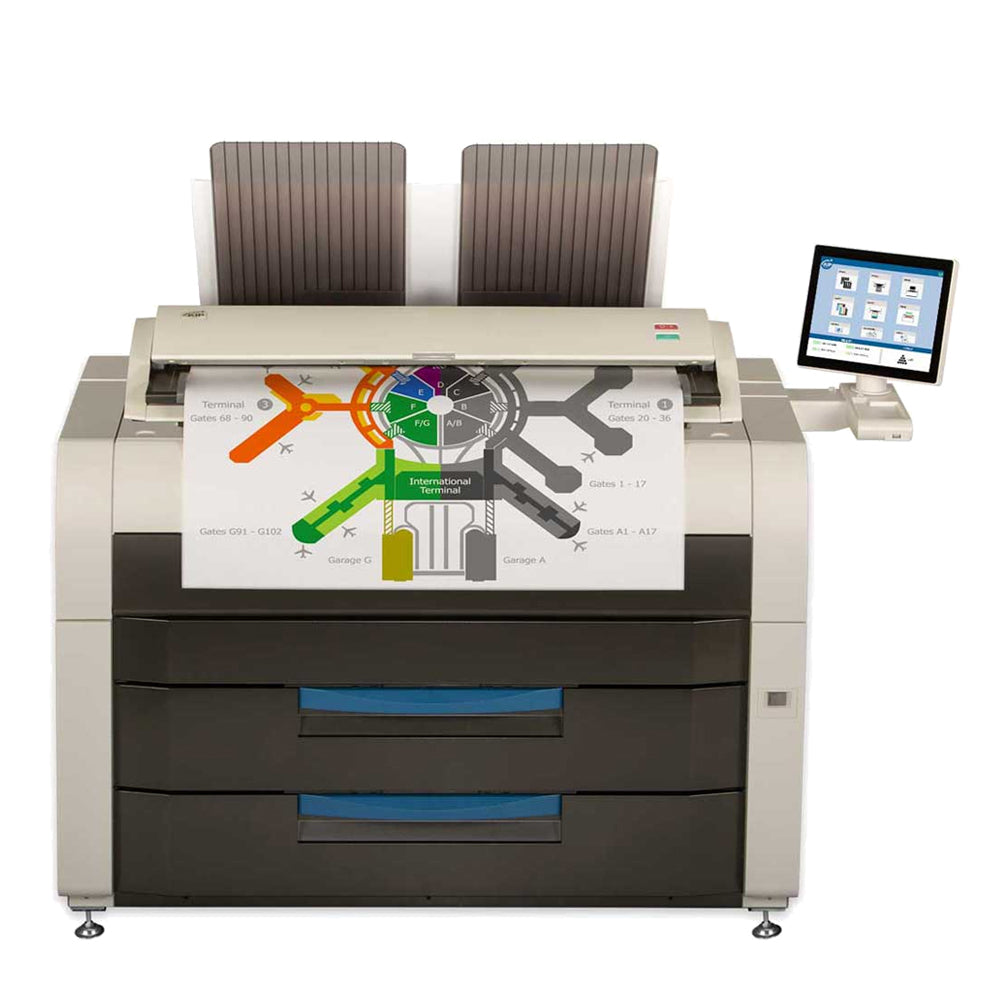

KIP 7770 Monochrome Wide Format Printer

The KIP 7770 Production System Wide Format Printer is designed to increase print production by delivering high volume output with exceptional reliable performance. Its advanced features and versatile capabilities can meet the toughest demands of virutally any digital imaging environment. It can produce up to 9D size A1 printers per minute at 600 x 2100 dpi resolution. It features 2 rolls standard media capacity and a cut-sheet bypass feeder for superior rpoductivity and exceptional value. The Konica Minolta KIP 7770 give you incredible versatility and advanced technology. It offers uniform cut length and produce consistent print quality while maintaining low operational costs.

download brochure

Configuration Used
Print Technology Electrophotography (LED) with organic photoconductor (OPC) and closed toner system
Print Speed 9 D / 5 A0 size pages per minute, FPOT (First Print Output Time) 18 seconds D / A1 size page
Warm Up Time Instant from standby, <4 minutes from start up
Roll Options 2 or 4 rolls - 11” - 36” / 297 mm - 914 mm roll width
Electrical Requirements 220-240 V, 50/60 Hz, 16 A
Power Consumption Sleep: <14 W Printing: 2.0 kW
Dimensions (WxDxH) / Weight 67” x 29” x 59” in. / 734 lb.
Print Resolution 600 x 2400 dpi
Paper Capacity 3000/6000 sq. ft. / 297/558 sq. m, max 2/4 rolls
Output Sizes Width 11” - 36” in. / 297 mm - 914 mm
Output Sizes Length Length: 20’ / 6 m (standard), 79’ / 24 m (optional)
Paper Weight Bond-Plain 18-24 lb. / 64-90 gsm,vellum-translucent-tracing 18-20 lb. / 80 gsm, film 3.5-4 mil / 75 micron
Media Type Bond-plain, vellum-translucent-tracing, film (compatible with recycled & colored bond)
Controller Type KIP System K Controller with Windows 7 Embedded
Memory 2 GB DDR3 standard - upgradeable to 4 GB
Compatible File Formats PDF, PDF-A, DWF, HPGL 1/2, HP-RTL, Calcomp 906/907, CALS Group 4, TIFF Group 4, PCX, CIT/TG4, Uncompressed, Grayscale TIFF, TIFF Packbits, PNG, JPEG
What's Included
  • KIP 7770
  • As-is level of consumables
  • Power cord
  • No warranty
Accessories
Optional accessories Stacking Systems (optional): Integrated top stacking - up to 50 sheet capacity
Stacking Systems (optional): High capacity print tray, KIP 1200 stacker
Multifunction Scanning Systems (optional): KIP 720 CIS scanner
Production Scanning Systems (optional): KIP 2300 CCD scanner
Folding Systems (optional): KIPFold 1000, KIPFold 2000
Media Capacity Upgrade (optional): Additional 2 roll media drawer to increase capacity from 2 rolls to 4 rolls
Optional KIP 720 Scanner
Optional KIP 2300 Scanner
