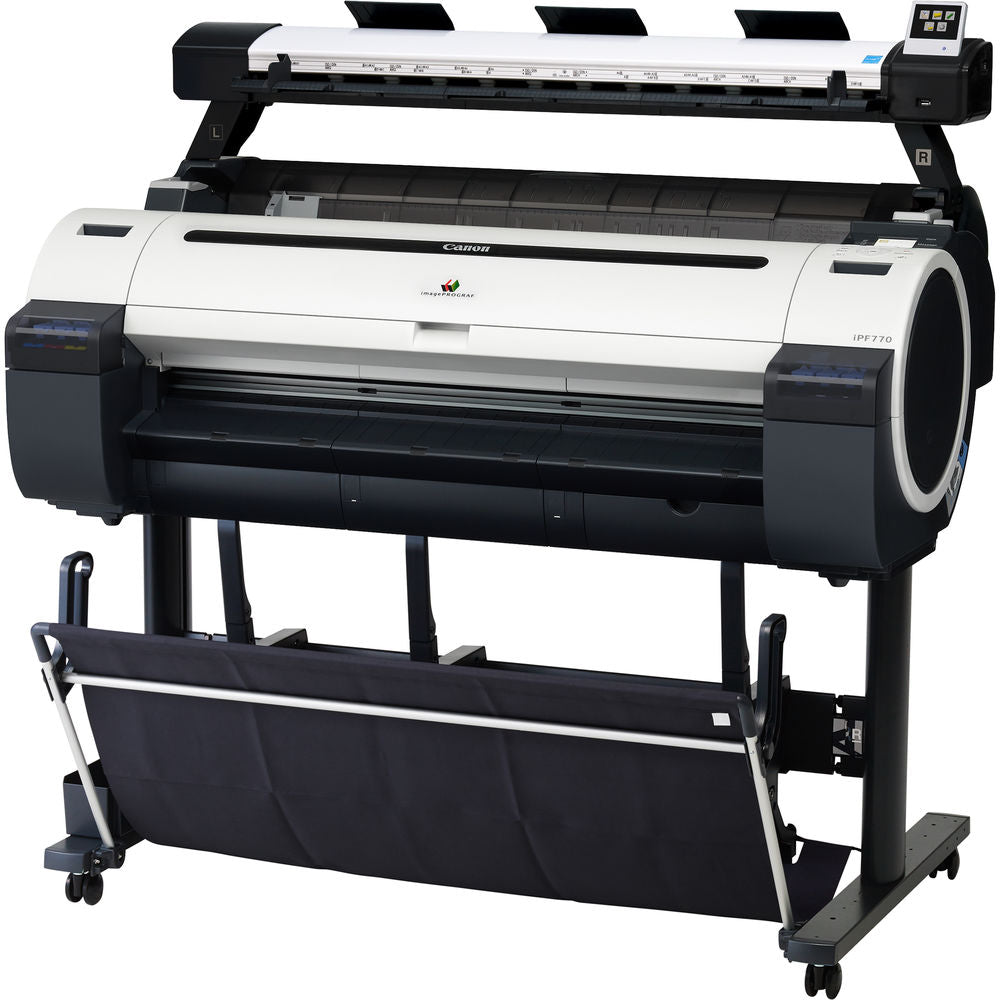

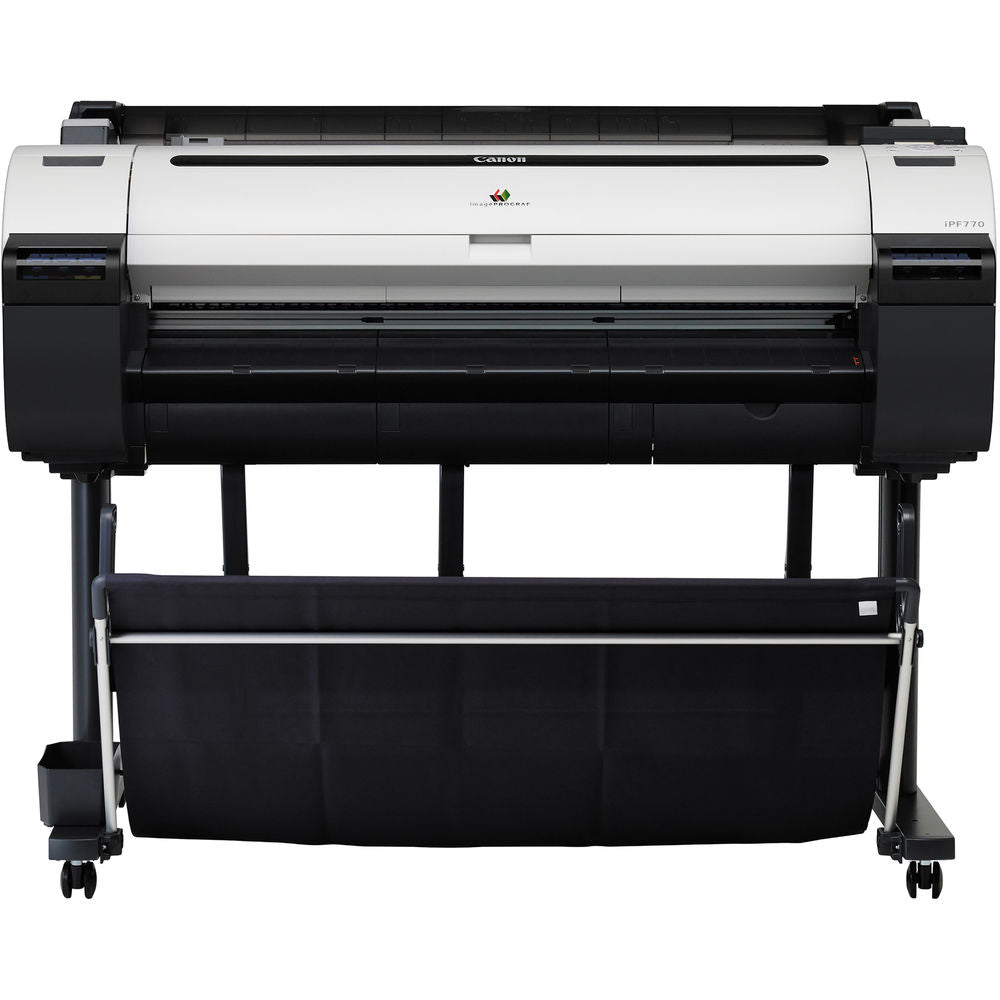

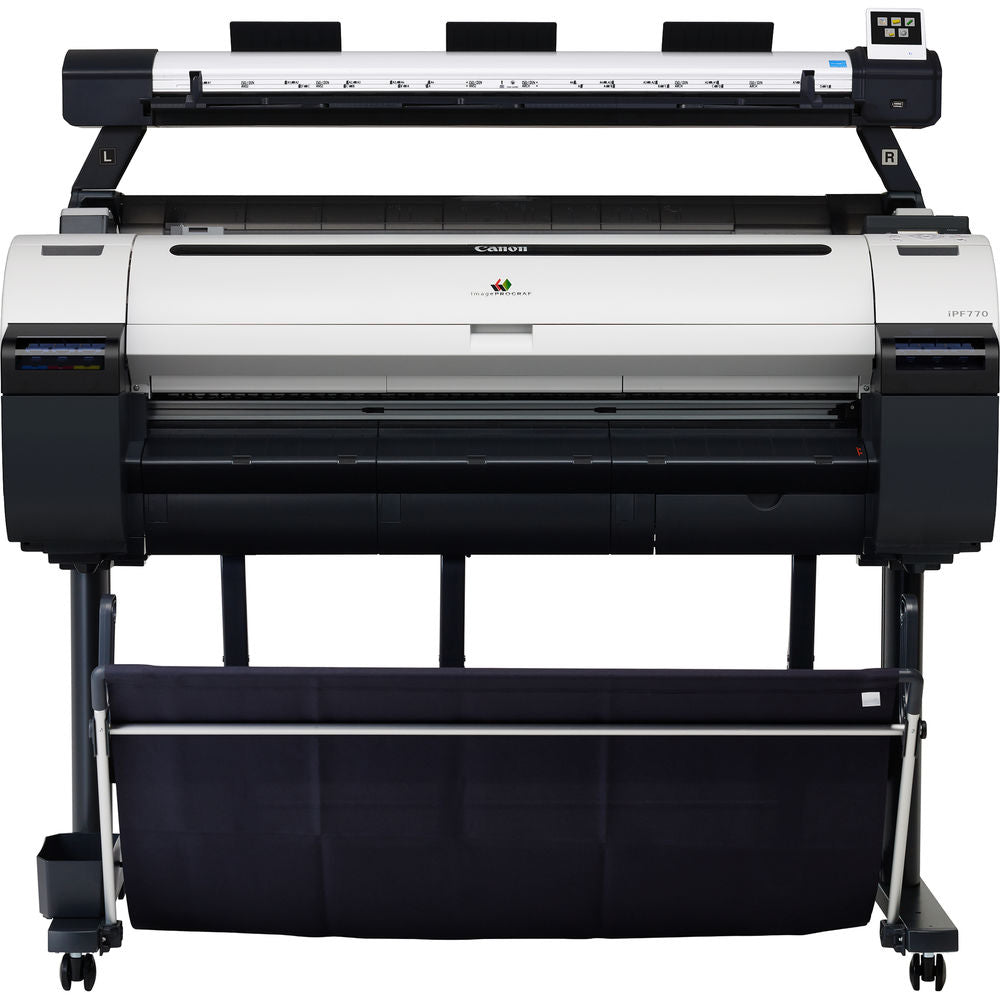

Canon imagePROGRAF iPF770 36-inch 1 Roll Wide Format Printer with Scanner

  • Sale
  • $4,500.00
  • Our price $6,000.00

Shopify secure badge

Canon imagePROGRAF iPF770 36-inch 1 Roll Color Wide Format Printer with Scanner

The Canon imagePROGRAF iPF770 is ideal for technical applications, posters, and office signage. It features an ink technology that uses four highly colorfast dye inks for producing bold, expressive color, plus two channels of pigment matte black ink for printing precise lines, smooth curves, and small text on technical and office documents.

The Canon imagePROGRAF iPF770 also comes with enhancements to the line-up of imagePROGRAF software solutions can help improve printing workflow and management.

download brochure

Configuration 36-inch Large Format Printer with Scanner
Print Speed A0 Size, Plain Paper
0:48 min (Fast Economy Mode)
0:48 min (Fast Mode)
1:15 min (Standard Mode)

A0 Size, Coated Paper
1:15 min (Fast Mode)
2:24 min (Standard Mode)
3:50 min (High Quality Mode)
Image Quality Print Resolution: up to 2400 × 1200 dpi
Media Media Width
Cut Sheet: 8 - 36 in.
Roll Feed: 10 - 36 in.

Maximum Roll Print Length
Roll Feed: 59 ft.
Cut Sheet: 63 ft.

Maximum Media Roll Diameter
5.9 in.

Borderless Printing Width
10", B4, A3, 14", A2, 17", B2, A1, 24, A0, B1, 36"

Paper Feed Method
Roll Feed: One Roll, Top-loading, Front output
Cut Sheet: One sheet, Top loading, Front output
Print Technology Print Technology
FINE (Full-Photolithography Inkjet Nozzle Engineering)


Line Accuracy
±0.1% or Less

Number of Nozzles
Matte Black: 5,120 Nozzles
Other Colors: 2,560 Nozzles per Color

Droplet Size
4 Picoliter

Nozzle Pitch (Head Resolution)
1200 dpi × Two Rows

Print-Head Swath

Ink Type
Dye: Cyan (C), Magenta (M), Yellow (Y), Black (K)
Pigment: Matte Black (MBK)

Ink Tank
PFI-107: C, M, Y, BK, MBK

Ink Tank Capacity
Starter: 90 ml
Replacement: 130 ml

Ink Supply Method
Tubing System with Sub-Ink Tanks for Continuous

Ink Supply
Nozzle Recovery System
Non-firing Nozzle Detection and Compensation
Memory 256 MB
Connectivity USB 2.0 Hi-Speed, 10/100/1000Base-T/TX
Dimensions / Weight 42" x 51" x 34" / 139 lb.
O.S. Compatibility Windows XP (32 bit), Server 2003 (32/64 bit)
Windows Server 2008 (32/64 bit), Server 2012 (64 bit)
Windows Vista® (32/64 bit), Windows 7 (32/64 bit)
Windows 8 (32/64 bit), Macintosh OS X 10.6.8 - 10.9X
Power Consumption Maximum
140 W or Less
5 W or Less
Power Off
1 W or Less (Executive Order Compliant)
Related product Canon imagePROGRAF iPF770
What's Included
  • Canon imagePROGRAF iPF770
  • L36 Scanner
  • Sold as-is
  • No warranty
Accessories PosterArtist
Roll Holder Set (RH2-33)
Supplies Ink Tank (PFI-107 MBK, BK, C, M, Y)
Print-Head (PF-04)
Maintenance Cartridge (MC-10)
  • Handling Time: 3-5 business days
  • Delivery Time: 7-14 business days

All shipments are insured and trackable. Local pickup is available upon request. We are located in Corona, Riverside County, CA.

If you prefer your shipment to be palletized and crated, we offer this service at an additional charge. Please contact us for arrangements.


Canon imagePROGRAF iPF770, Canon iPF 770, 770
