Canon imagePROGRAF iPF785 36-inch Color Inkjet Wide Format Printer

  • Sale
  • Our price $4,500.00

Shopify secure badge

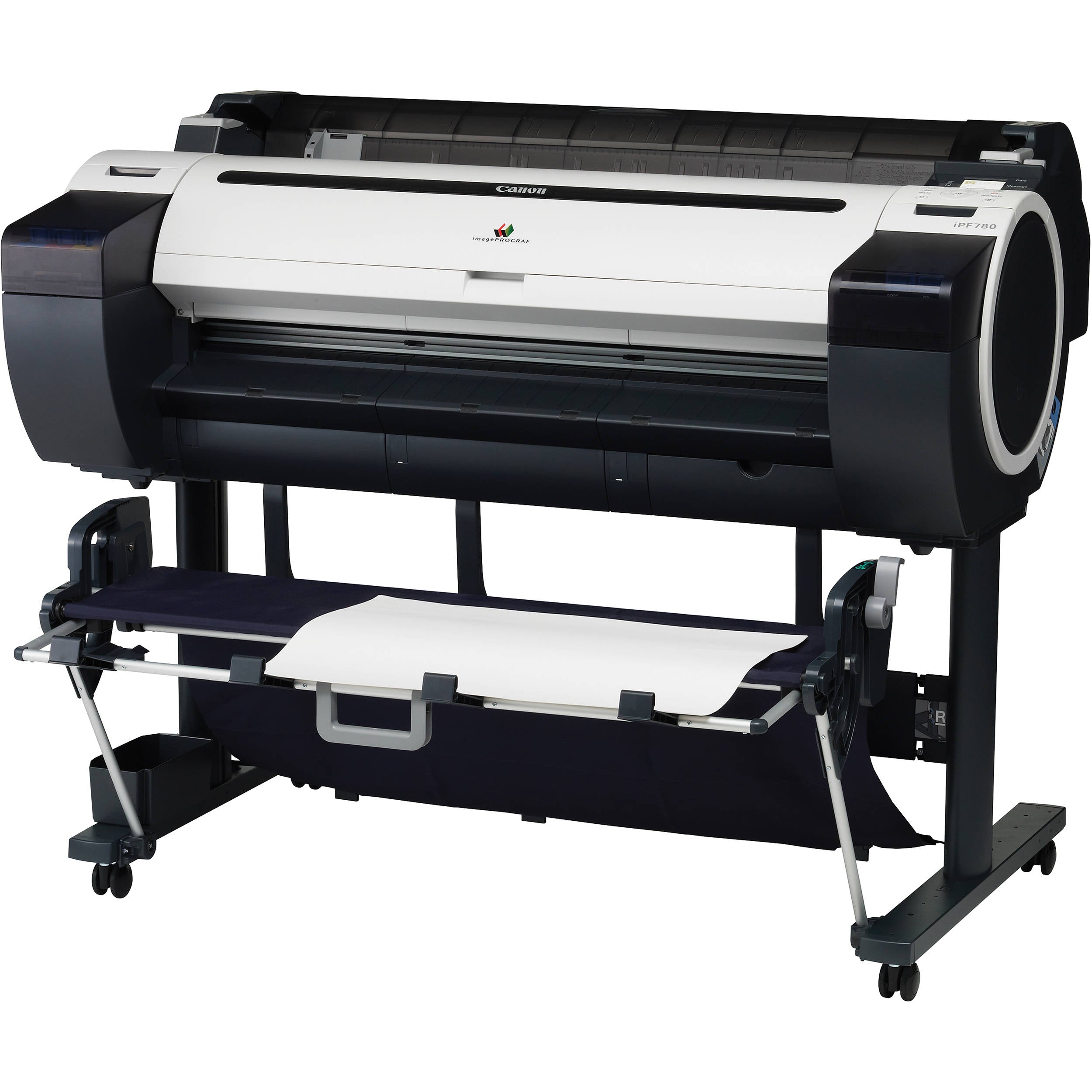

Canon imagePROGRAF iPF785 36-inch Color Inkjet Wide Format Printer

The Canon imagePROGRAF iPF785 comes from Canon's award winning line of 5-color printers, which features enhancements in both its hardware and software capabilities. It is capable of printing an Arch D (24" x 36") print in up to 21 seconds using Economy mode, and an Arch E (33.1" x 46.8") print in up to 41 seconds.

The Canon imagePROGRAF iPF785 comes with a 320GB hard drive built in, allowing for enhanced file processing, personal mailbox space, and job storage of up to 500 print jobs.

download brochure

Configuration Printer
Print Print Speed:
A0 Size, Plain Paper
0:41 min (Fast Economy Mode)
0:48 min (Fast Mode)
1:15 min (Standard Mode)

A0 Size, Coated Paper
1:15 min (Fast Mode)
2:24 min (Standard Mode)
3:50 min (High Quality Mode)
Image Quality Print resolution: Up to 2400 x 1200 dpi
Media Media Width
Cut Sheet: 8 - 36 in.
Roll Feed: 10 - 36 in.

Maximum Roll Print Length
Roll Feed: 59 ft.
Cut Sheet: 63 ft.

Maximum Media Roll Diameter
5.9 in.

Borderless Printing Width
10", B4, A3, 14", A2, 17", B2, A1, 24", A0, B1, 36"

Paper Feed Method
Roll Feed: One Roll, Top-loading, Front output
Cut Sheet: One sheet, Top loading, Front output
Print Technology

Technology: FINE (Photolithography Inkjet Nozzle Engineering)

Print Languages: GARO, HP-GL/2, HP RTL

Line Accuracy: ±0.1% or Less

Number of Nozzles
Matte Black: 5,120 Nozzles
Other Colors: 2,560 Nozzles per Color

Droplet Size: 4 Picoliter

Nozzle Pitch (Head Resolution): 1200 dpi × Two Rows

Print-Head Swath: 1.07 inch

Ink Type
Dye: Cyan (C), Magenta (M), Yellow (Y), Black (K)
Pigment: Matte Black (MBK)

Ink Tank
PFI-107: C, M, Y, BK, MBK
PFI-207: C, M, Y, BK, MBK

Ink Tank Capacity
Starter: 130 ml (MBK), 90 ml (All other colors)
Replacement: 130 ml or 300 ml

Ink Supply Method
Tubing System with Sub-tanks for Continuous
Ink Supply

Ink Supply
Non-firing Nozzle Detection and Compensation
Memory Buffer Ram: 32GB
Hard Drive: 320GB
Connectivity USB 2.0 Hi-Speed, 10/100/1000Base-T/TX
Dimensions 52" x 35" x 45" in.
O.S. Compatibility Windows XP (32 bit), Server 2003 (32/64 bit),
Server 2008 (32/64 bit), Server 2012 (64 bit),
Windows Vista® (32/64 bit), Windows 7 (32/64 bit);
Windows 8 (32/64 bit), Windows 8.1 (32/64 bit),
Windows 10 (32/64 bit), Macintosh OS X 10.6.8-10.9X
Power Consumption Operation: 140W or less
Power Off Standby: 0.5 W or less
Power consumption of sleep mode: 5W or less
Time to enter sleep mode: approx. 5 min
Related products
Canon imagePROGRAF iPF780
Canon imagePROGRAF iPF780 with Scanner
Canon imagePROGRAF iPF785 with Scanner
What's Included
  • Canon imagePROGRAF iPF785
  • Sold as-is
  • No warranty
Accessories Dust Cover DC36-2
Maintenance Cartridge MC-10
Print Head PF-04
Roll Holder Set RH2
Supplies Canon Ink Tank PFI-107MBK - Pigment Matte Black Ink Tank 130ml
Canon Ink Tank PFI-107BK - Dye Black Ink Tank 130ml
Canon Ink Tank PFI-107C - Dye Cyan Ink Tank 130ml
Canon Ink Tank PFI-107M - Dye Magenta Ink Tank 130ml
Canon Ink Tank PFI-107Y - Dye Yellow Ink Tank 130ml
Canon Ink Tank PFI-207MBK - Pigment Matte Black Ink Tank 300ml
Canon Ink Tank PFI-207BK - Dye Black Ink Tank 300ml
Canon Ink Tank PFI-207C - Dye Cyan Ink Tank 300ml
Canon Ink Tank PFI-207M - Dye Magenta Ink Tank 300ml
Canon Ink Tank PFI-207Y - Dye Yellow Ink Tank 300ml
  • Handling Time: 3-5 business days
  • Delivery Time: 7-14 business days

All shipments are insured and trackable. Local pickup is available upon request. We are located in Corona, Riverside County, CA.

If you prefer your shipment to be palletized and crated, we offer this service at an additional charge. Please contact us for arrangements.
