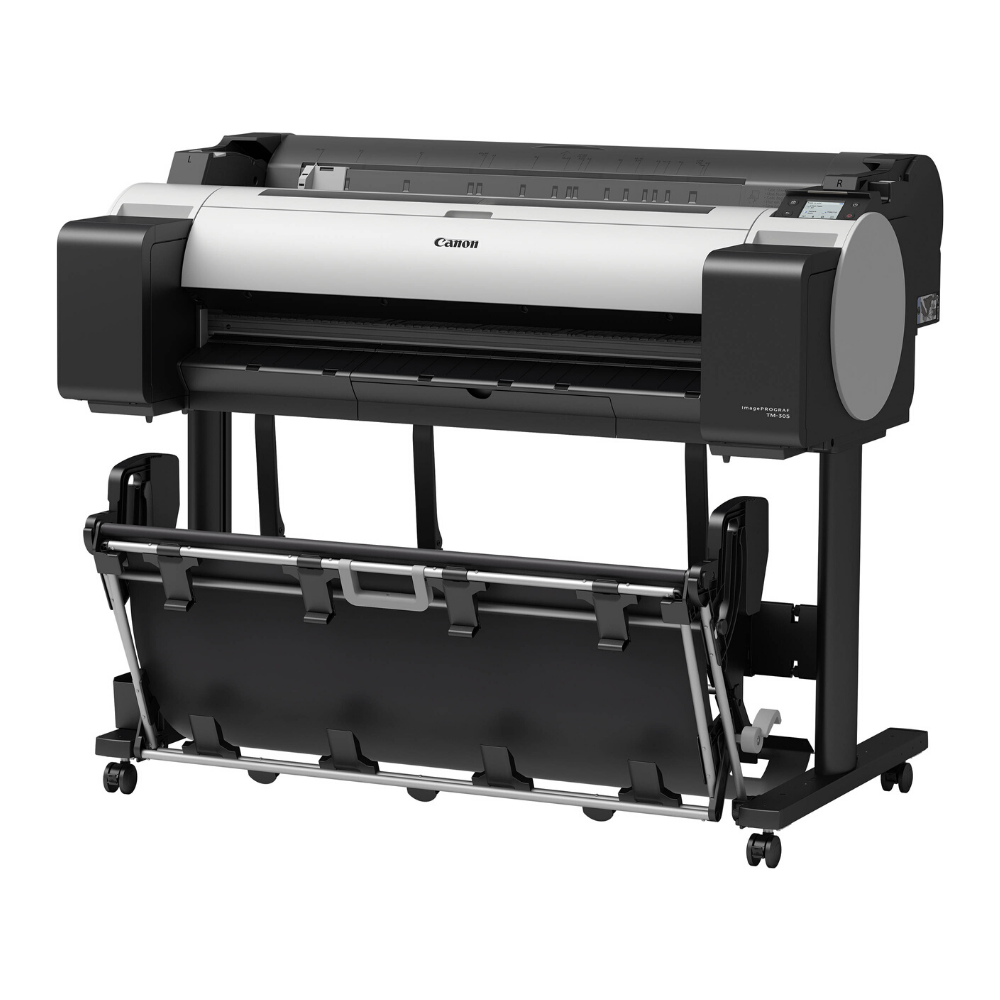

Canon imagePROGRAF TM-305 36-inch Inkjet Wide-Format Printer - Brand New

The Canon imagePROGRAF TM-305 36-inch Inkjet Wide-Format Printer is ideal for printing technical documents, CAD drawings and GIS maps, but also posters, signage and displays. It is built with Canon developed technologies including a 5-color LUCIA TD pigment ink, PF-06 print head, L-COA PRO image processor, and a clear, intuitive operation panel. The Canon imagePROGRAF TM-305 comes with a host of creative workflow software, and is nearly 60% quieter than previous models.

The Canon imagePROGRAF TM-305 features Canon FINE (Photolithography Inkjet Nozzle Engineering) Technology and a maximum print resolution of up to 2400 x 1200 dpi. It also has an optional integrated scanner.

download brochure

Brand New
Configuration Standard: Printer

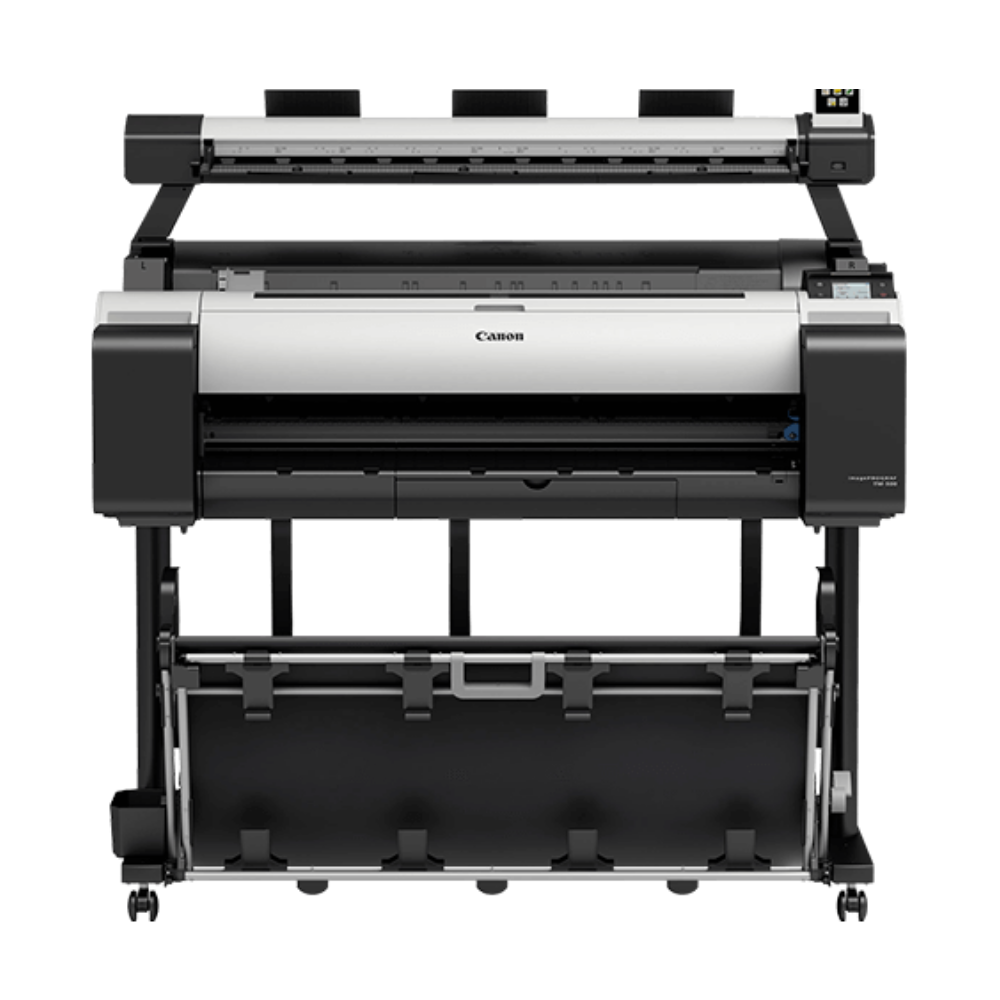

Optional: Scanner
Print Speed CAD Drawing - Plain Paper (A1 page size)
0:40 (Fast Economy Mode)
0:46 (Fast)
1:14 (Standard)

Poster - Plain Paper (A1 page size)
0:44 (Fast)
1:18 (Standard)

Poster - Heavy Coated Paper (A1 page size)
1:41 (Fast)
2:36 (Standard)
Image Quality Print resolution (Max): Up to 2400 x 1200 dpi
Media Media Width
Cut Sheet: 8- 36 in.
Roll Feed: 8 - 36 in.

Maximum Roll Print Length
Roll Feed: 59 ft.

Maximum Media Roll Diameter
5.9 in.

Borderless Printing Width
8”, 10", 12”, 14", 16” 17", 20”, 24", 36", B4, A3, A2, B2, A1, B1, A0

Paper Feed Method
Roll Feed: One Roll, Top-loading, Front Output
Cut Sheet: Top Loading, Front Output
Print Technology Technology
FINE (Photolithography Inkjet Nozzle Engineering)

Line Accuracy
±0.1% or Less

Number of Nozzles
Matte Black: 5,120 Nozzles
Other Colors: 2,560 Nozzles per Color

Droplet Size
5 Picoliter

Nozzle Pitch (Head Resolution)
1200 dpi x Two Rows

Print Head Swath
1.07 inch

Ink Type
Pigment: Matte Black (MBK), Cyan (C), Magenta (M),
Yellow (Y), Black (BK)

Ink Tank
Shipped with Printer: MBK (130 ml) BK, C, M, Y (90 ml)
Replacement: PFI-120 (130 ml) or PFI-320 (300 ml)

Ink Supply Method
Tubing System with Sub-tanks for Continuous Ink Supply

Nozzle Recovery System
Non-firing Nozzle Detection and Compensation

Printer Controller

Print Language
Printer: SGRaster, HP-GL/2, HP RTL, PDF, JPEG
Printer RAM Printer RAM: 128 GB (Virtual), 2 GB (Physical)
Hard Drive: 500 GB
Connectivity Standard (Built-in): USB 2.0 Hi-Speed, 10/100/
1000Base-T/TX, Wireless LAN (IEEE 802.11 b/g /n),
Direct USB Thumb Drive
Dimensions / Weight 42" x 51" x 35" Approx. 134 lb (With Basket Opened)
O.S. Compatibility Windows 7 (32/64 bit), Windows 8.1 (32/64 bit),
Windows 10 (32/64 bit), Windows Server 2008 R2,
(32/64 bit), Windows Server 2012 (64 bit), Windows
Server 2012 R2 (64 bit), Windows Server 2016 (64 bit),
Macintosh OS X v10.10.5-v10.12x
Power Consumption Maximum: 69 W or Less
Standby: 3.6 W or Less
Power Off: 0.3 W or Less (Executive Order Compliant)
Related Products Canon imagePROGRAF TM-200
Canon imagePROGRAF TM-300
Accessories Optional Canon T36 Scanner
2"/3" Roll Holder Set (RH2-35)
Supplies Ink Tank (PFI-120/PFI-320)
Print Head (PF-06)
Maintenance Cartridge (MC-31)
Cutter Blade (CT-08)
  • Handling Time: 3-5 business days
  • Delivery Time: 7-14 business days

All shipments are insured and trackable. Local pickup is available upon request. We are located in Corona, Riverside County, CA.

If you prefer your shipment to be palletized and crated, we offer this service at an additional charge. Please contact us for arrangements.
