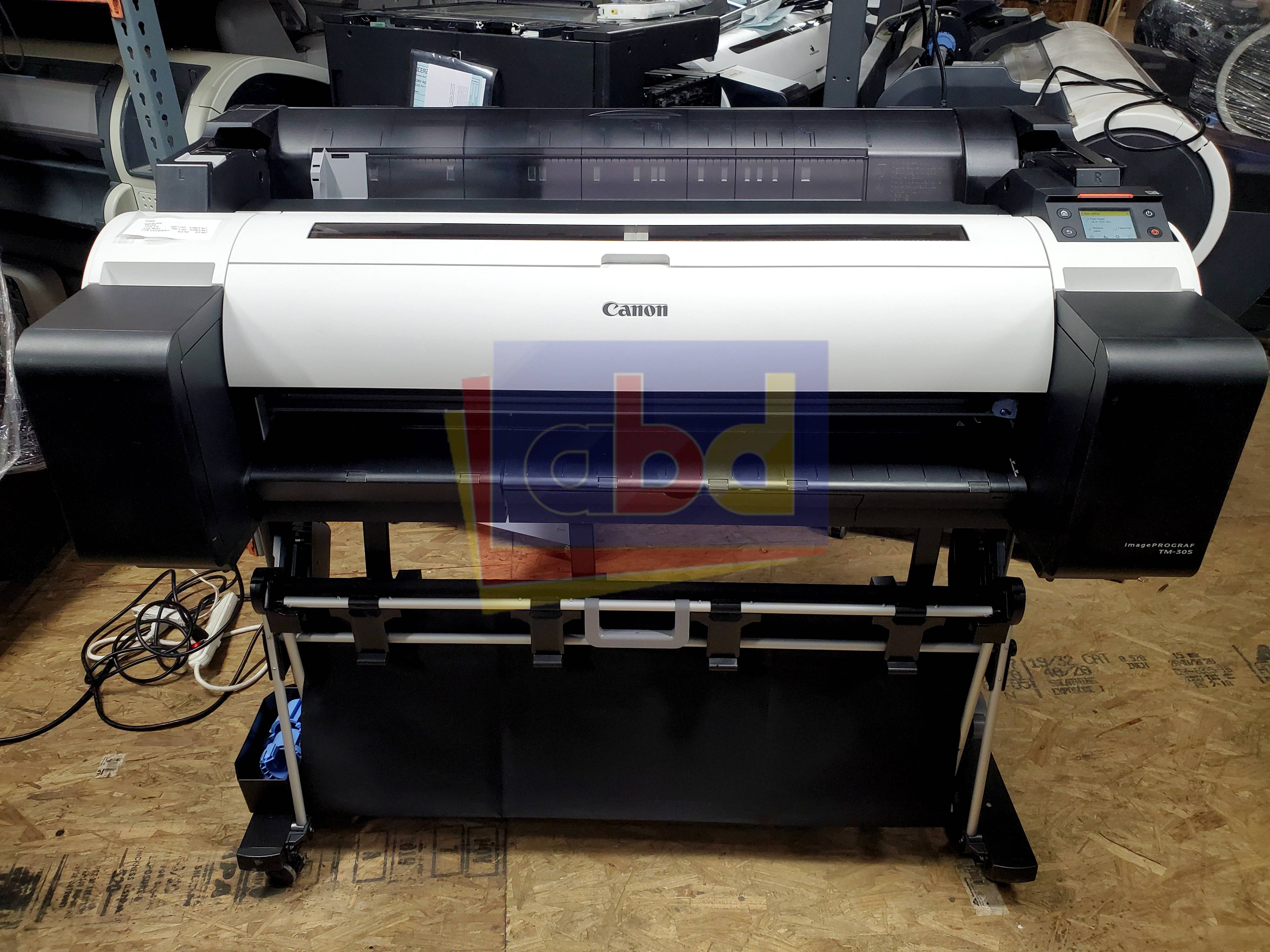

Canon imagePROGRAF TM-305 36-inch Color 1 Roll Large Format Printer

  • Sale
  • Our price $3,000.00

This product is out of stock.

Shopify secure badge

Canon imagePROGRAF TM-305 36-inch Color 1 Roll Large Format Printer

The Canon imagePROGRAF TM-305 is ideal for printing technical documents, CAD drawings and GIS maps, but also posters, signage and displays. It is built with Canon developed technologies including a 5-color LUCIA TD pigment ink, PF-06 print head, L-COA PRO image processor, and a clear, intuitive operation panel. The Canon imagePROGRAF TM-305 comes with a host of creative workflow software, and is nearly 60% quieter than previous models.

The Canon imagePROGRAF TM-305 features Canon FINE (Photolithography Inkjet Nozzle Engineering) Technology and a maximum print resolution of up to 2400 x 1200 dpi. It also has an optional integrated scanner.

download brochure

Configuration Standard: Printer
Optional: Scanner
Print Speed CAD Drawing - Plain Paper (A1 page size)
0:40 (Fast Economy Mode)
0:46 (Fast)
1:14 (Standard)

Poster - Plain Paper (A1 page size)
0:44 (Fast)
1:18 (Standard)

Poster - Heavy Coated Paper (A1 page size)
1:41 (Fast)
2:36 (Standard)
Image Quality Print resolution (Max): Up to 2400 x 1200 dpi
Media Media Width
Cut Sheet: 8 - 36 in.
Roll Feed: 8 - 36 in.

Maximum Roll Print Length
Roll Feed: 59 ft.

Maximum Media Roll Diameter
5.9 in.

Borderless Printing Width
8”, 10", 12”, 14", 16” 17", 20”, 24", 36", B4, A3, A2, B2, A1, B1, A0

Paper Feed Method
Roll Feed: One Roll, Top-loading, Front Output
Cut Sheet: Top Loading, Front Output
Print Technology Technology
FINE (Photolithography Inkjet Nozzle Engineering)

Line Accuracy
±0.1% or Less

Number of Nozzles
Matte Black: 5,120 Nozzles
Other Colors: 2,560 Nozzles per Color

Droplet Size
5 Picoliter

Nozzle Pitch (Head Resolution)
1200 dpi x Two Rows

Print Head Swath
1.07 inch

Ink Type
Pigment: Matte Black (MBK), Cyan (C), Magenta (M),
Yellow (Y), Black (BK)

Ink Tank
Shipped with Printer: MBK (130 ml) BK, C, M, Y (90 ml)
Replacement: PFI-120 (130 ml) or PFI-320 (300 ml)

Ink Supply Method
Tubing System with Sub-tanks for Continuous Ink Supply

Nozzle Recovery System
Non-firing Nozzle Detection and Compensation

Printer Controller

Print Language
Printer: SGRaster, HP-GL/2, HP RTL, PDF, JPEG
Printer RAM Printer RAM: 128 GB (Virtual), 2 GB (Physical)
Hard Drive: 500 GB
Connectivity Standard (Built-in): USB 2.0 Hi-Speed, 10/100/
1000Base-T/TX, Wireless LAN (IEEE 802.11 b/g /n),
Direct USB Thumb Drive
Dimensions / Weight 42" x 51" x 35" in / Approx. 134 lb
O.S. Compatibility Windows 7 (32/64 bit), Windows 8.1 (32/64 bit),
Windows 10 (32/64 bit), Windows Server 2008 R2,
(32/64 bit), Windows Server 2012 (64 bit), Windows
Server 2012 R2 (64 bit), Windows Server 2016 (64 bit),
Macintosh OS X v10.10.5-v10.12x
Power Consumption Maximum: 69 W or Less
Standby: 3.6 W or Less
Power Off: 0.3 W or Less (Executive Order Compliant)
What's Included
  • Canon imagePROGRAF iPF760
  • Sold as-is
  • No warranty
Accessories Optional Canon T36 Scanner
2"/3" Roll Holder Set (RH2-35)
Supplies Ink Tank (PFI-120/PFI-320)
Print Head (PF-06)
Maintenance Cartridge (MC-31)
Cutter Blade (CT-08)

Free local delivery can be arranged within 10 to 15 miles from Corona, CA 92878.

  • Standard Shipping: $500.00
  • Handling Time: 3-5 business days
  • Delivery: 5-7 business days

* Free warehouse pickup is available for those in the Corona, CA area.
