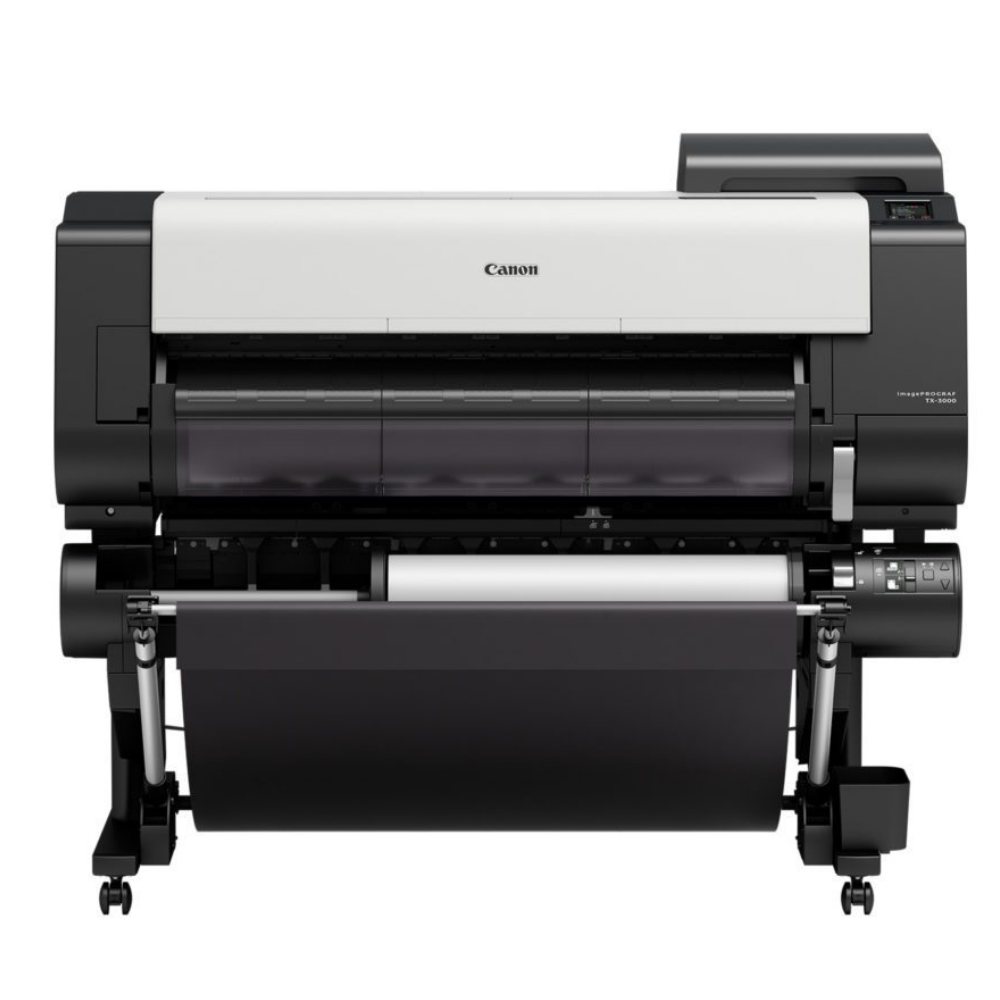

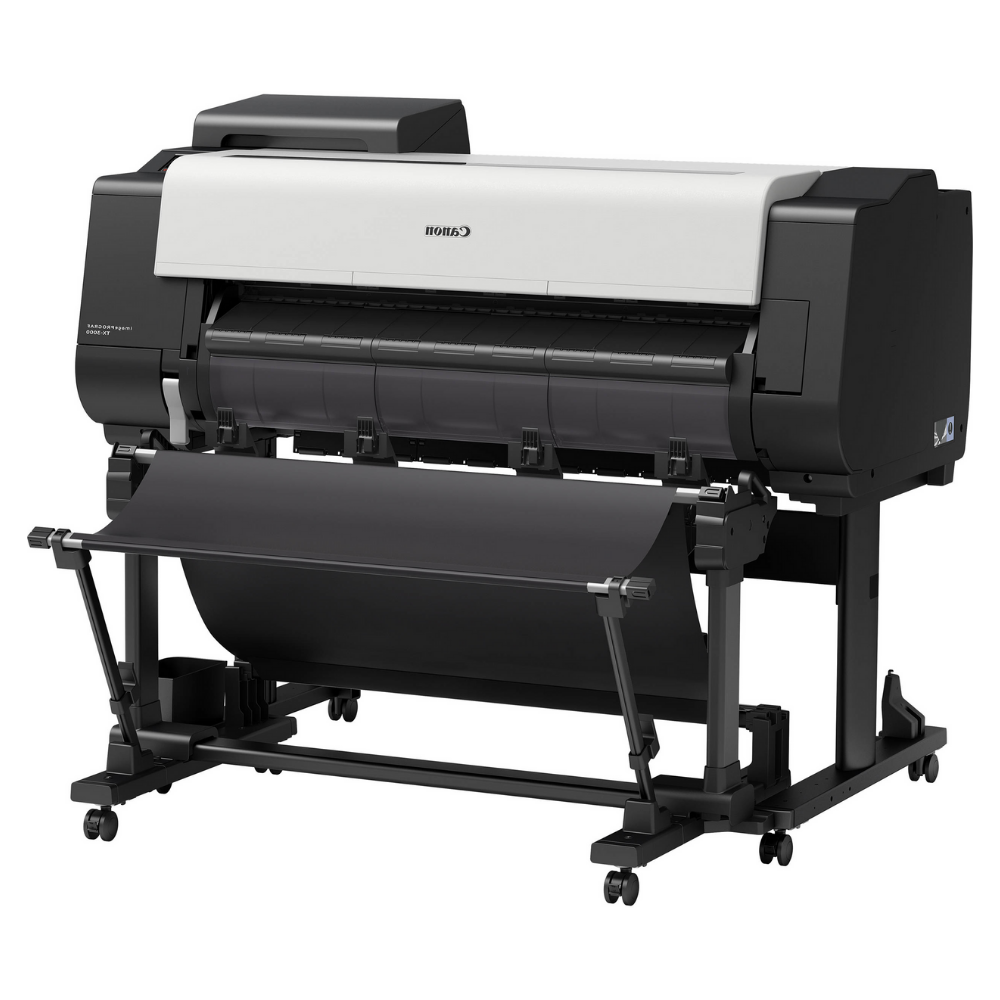

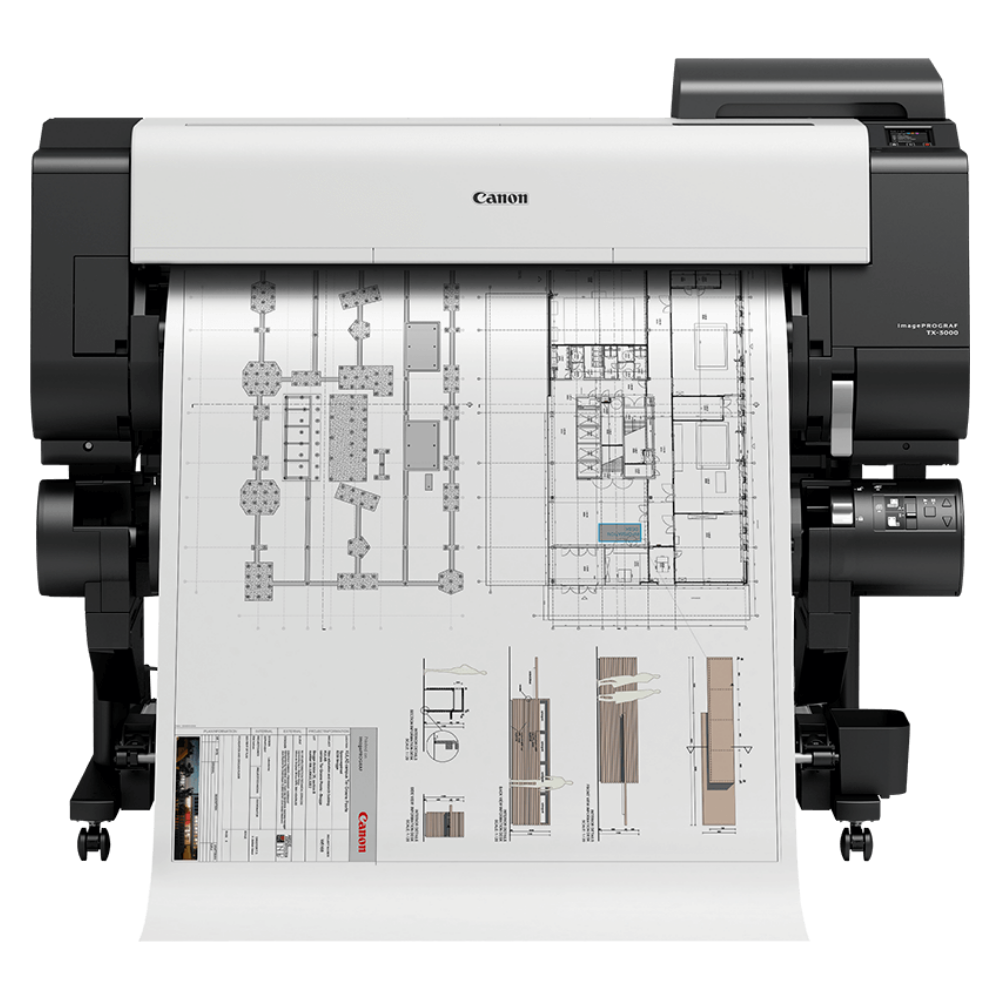

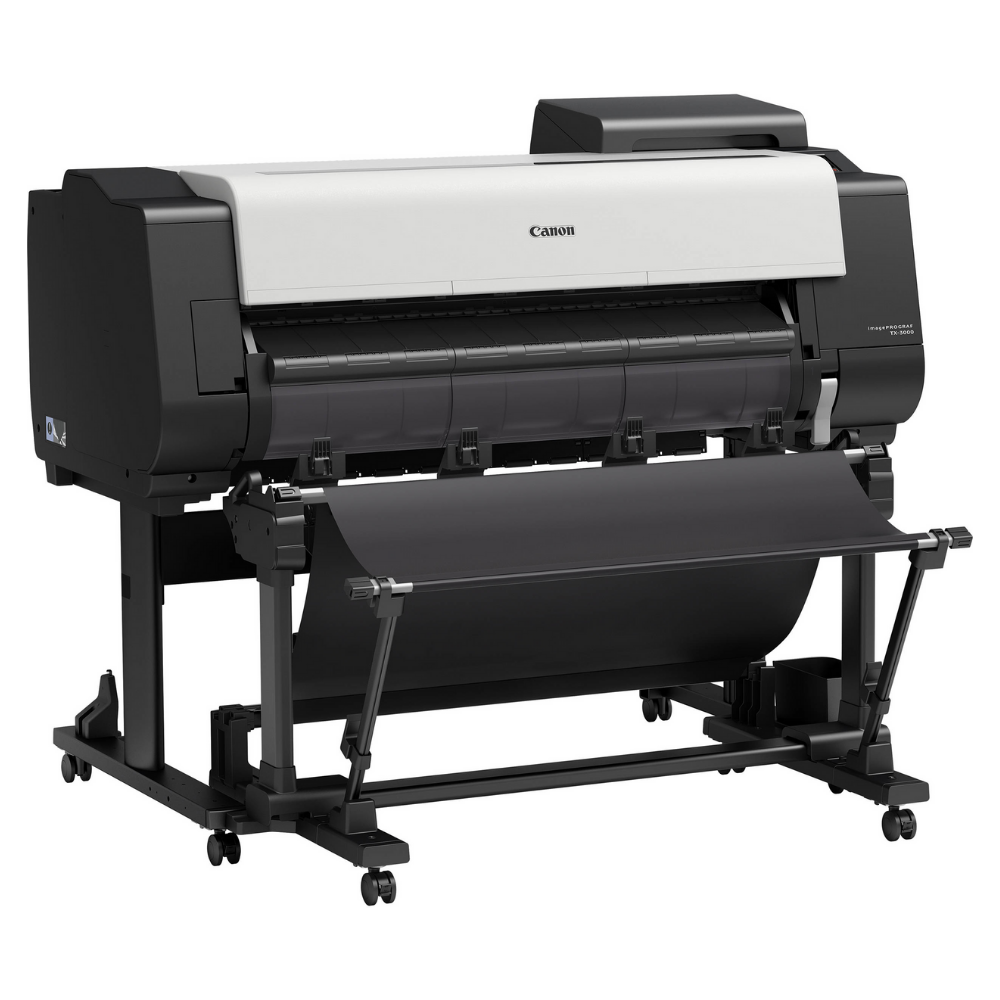

Canon imagePROGRAF TX-3000 36-inch Color Inkjet Wide Format Printer

  • Sale
  • Our price $4,500.00

Shopify secure badge

Canon imagePROGRAF TX-3000 36-inch Color Inkjet Wide Format Printer

The Canon imagePROGRAF TX-3000 36-inch Color Inkjet Wide Format Printer have a 5-color LUCIA TD Pigment ink system. This ink produces fine lines and sharp text, even on non-inkjet coated paper. It offers Automatic Media Loading. Simply load a roll of media onto the roll holder, place it in the printer. The Canon imagePROGRAF TX-3000 also comes equipped with security features designed to help protect confidential information.

The Canon imagePROGRAF TX-3000 satisfy the needs of the high-volume CAD and low-volume LED plotter markets with print quality, usability, security, and print speeds up to 147 D-sized prints per hour. It has a max printing resolution of 2400 x 1200 dpi, and can print on media sizes up to 36" inch length.

download brochure

Configuration Printer, Optional Scanner
Print Speed up to 147 D-sized prints per hour
Image Quality Print resolution: up to 2400 x 1200 dpi max
Media Handling Media Width:
Cut Sheet: 8"- 36"
Roll Feed: 8" - 36"

Max. Roll Print Length:
Roll Feed - 59' (18 meters)

Max. Media Roll Diameter:
6.7" (170mm)

Borderless Printing Width (Roll Media Only):
8", 10", 12", 14", 16", 17", 20", 24", 30", 36", B4, A3, A3+, A2, B2, A1, B1, A0

Paper Feed Method:
Roll Feed: One Roll, Front-loading, Front Output Front Loading
Manual Feed: One Roll, Front Output
Print Technology Print Technology: FINE (Photolithography Inkjet Nozzle Engineering)

Print Language: SGRaster, HPGL/2, HP-RTL, PDF, JPEG

Line Accuracy: ±0.1% or Less

Number of Nozzles:
Matte Black: 5,120 Nozzles
Other Colors: 2,560 Nozzles per Color

Droplet Size: 5 Picoliter

Nozzle Pitch (Head Resolution): 1200 dpi x Two Rows

Print-Head Swath: 1.07 inch

Ink Type:
Pigment: Matte Black (MBK), Cyan (C), Magenta (M), Yellow (Y), Black (BK)

Ink Tank:
Shipped with Printer: PFI-310 (330 ml) MBK;
PFI-110 (160 ml) BK, C, M, Y
Replacement: PFI-110 (160 ml), PFI-310 (330 ml),
or PFI-710 (700 ml)

Ink Supply Method: Tubing System with Sub-tanks for Continuous Ink Supply

Nozzle Recovery System: Non-firing Nozzle Detection and Compensation
Memory Printer RAM: 128 GB (Virtual), 2 GB (Physical)
Hard Drive: 500 GB
Connectivity Standard (Built-in): USB 2.0 Hi-Speed, 10/100/
1000Base-T/TX, Wireless LAN (IEEE 802.11 b/g /n)
Direct USB Thumb Drive Printing
Dimensions / Weight 46.0" x 54.7" x 46.8" / Approx. 257 lb.
O.S. Compatibility Windows 7 (32/64 bit), Windows 8.1 (32/64 bit), Windows 10 (32/64 bit), Windows Server 2008 R2 (32/64 bit), Windows Server 2012 (64 bit), Windows Server 2012 R2 (64 bit), Windows Server 2016 (64 bit), Macintosh OS X v10.10.5-v10.12x
Power Requirement AC-100-240V (50-60Hz)
What's Included
  • Canon imagePROGRAF TX-3000
  • Sold as-is
  • No warranty
Accessories Canon T36 Scanner
Multifunction Roll System (RU-32)
2"/3" Roll Holder Set (RH2-34)
Supplies Ink Tank (PFI-110/PFI-310/PFI-710)
Print Head (PF-06)
Maintenance Cartridge (MC-30)
Cutter Blade (CT-07)
  • Handling Time: 3-5 business days
  • Delivery Time: 7-14 business days

All shipments are insured and trackable. Local pickup is available upon request. We are located in Corona, Riverside County, CA.

If you prefer your shipment to be palletized and crated, we offer this service at an additional charge. Please contact us for arrangements.


Canon imagePROGRAF TX-3000, imagePROGRAF TX-3000, TX 3000, 3000
