Canon imagePROGRAF TX-4000 44-inch Color Inkjet Wide Format Printer

  • Sale
  • Our price $5,000.00

Shopify secure badge

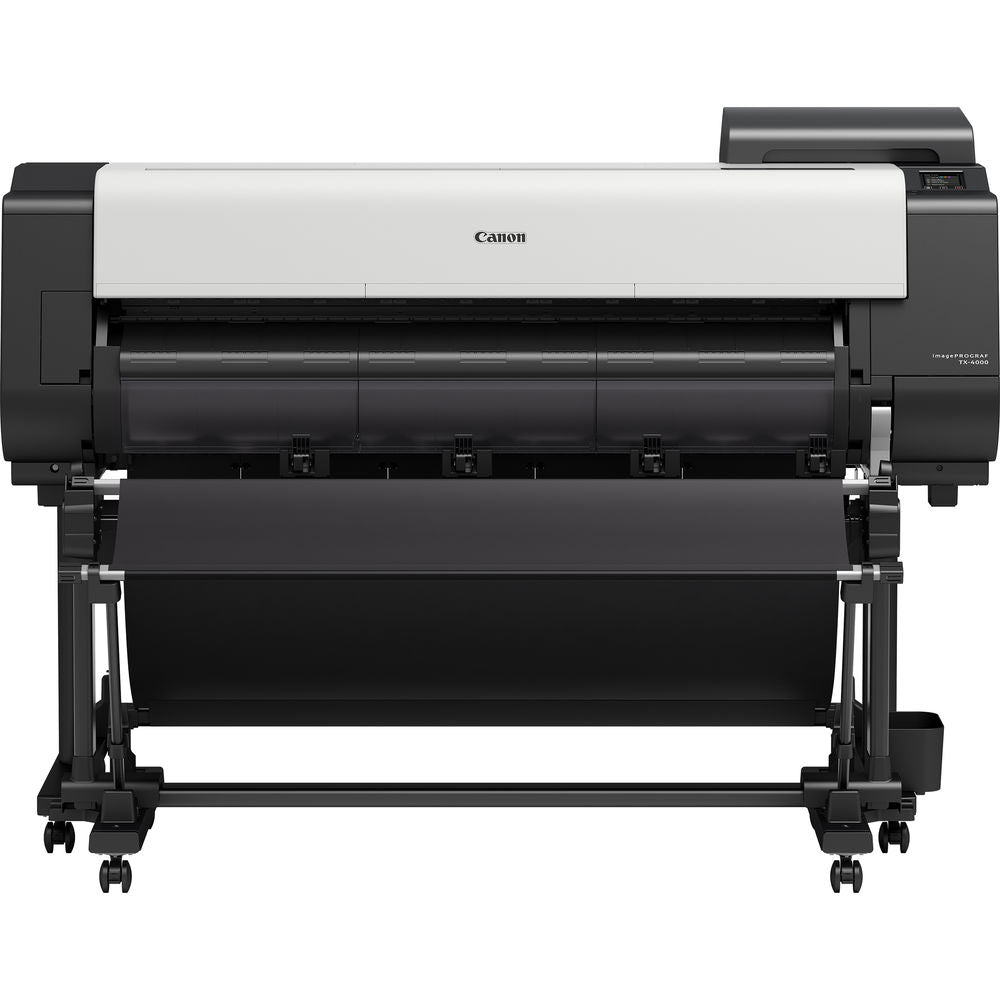

Canon imagePROGRAF TX-4000 44-inch Color Inkjet Wide Format Printer

The Canon imagePROGRAF TX-4000 44-inch Color Large Format Printer provides solutions for businesses and help them capitalize on emerging market trends. Its features are designed to help improve productivity, maximize use, and enhance security features in a seamless system. This Canon imagePROGRAF TX-4000 also offers multifaceted advanced solutions for high production, technical document inkjet printer market.

The Canon imagePROGRAF TX-4000 features the 5-color LUCIA TD Pigment ink system and the Sub-Ink Tank System for quality and uninterrupted printing.  It also features an Automatic Media Loading, optional Multifunction Roll System, and comes with security features to help businesses protect confidential information. It also prints up to 147 D-size prints per hour to deliver the needs of high-volume CAD and low-volume LED plotter markets.

download brochure

Configuration Printer, Optional Scanner
Print CAD Drawing - Plain Paper (A0 Roll)
0:37 (Fast Economy Mode)
0:40 (Fast)
1:10 (Standard)

Poster - Plain Paper (A0 Roll)
0:42 (Fast Economy mode)
0:42 (Fast)
1:26 (Standard)

Poster - Heavy coated Paper (A0 Roll)
1:43 (Fast)
2:37 (Standard)
Image Quality Print resolution: up to 2400 x 1200 dpi max
Media Handling Media Width:
Cut Sheet: 8"- 44"
Roll Feed: 8" - 44"

Max. Roll Print Length:
Roll Feed - 59 ft.

Max. Media Roll Diameter:
6.7" in.

Borderless Printing Width (Roll Media Only):
8”, 10", 12”, 14", 16” 17", 20”, 24", 30”, 36", 42”, 44” B4, A3, A3+, A2, B2, A1, B1, A0, B0

Paper Feed Method:
Roll Feed: One Roll, Front-loading, Front Output Front Loading Manual Feed: One Roll, Front Output
Print Technology Print Technology: FINE (Photolithography Inkjet Nozzle Engineering)

Print Language: SGRaster, HP-GL/2, HP RTL, PDF, JPEG

Line Accuracy: ±0.1% or Less

Number of Nozzles:
Matte Black: 5,120 Nozzles
Other Colors: 2,560 Nozzles per Color

Droplet Size: 5 Picoliter

Nozzle Pitch (Head Resolution): 1200 dpi x Two Rows

Print-Head Swath: 1.07 inch

Ink Type:
Pigment: Matte Black (MBK), Black (BK), Cyan (C),
Magenta (M), Yellow (Y)

Ink Tank: (330 ml each color)
Replacement: PFI-110 (160 ml), PFI-310 (330 ml), or PFI-710 (700 ml)

Ink Supply Method: Tubing System with Sub-tanks for Continuous Ink Supply

Nozzle Recovery System: Non-firing Nozzle Detection and Compensation
Memory Printer RAM: 128 GB (Virtual), 2 GB (Physical)
Hard Drive: 500 GB
Connectivity Standard (Built-in): USB 2.0 Hi-Speed, 10/100/
1000Base-T/TX, Wireless LAN (IEEE 802.11 b/g /n)
Direct USB Thumb Drive Printing
Dimensions / Weight 46.0" x 62.7" x 46.8" / Approx. 277 lb.
O.S. Compatibility Windows 7 (32/64 bit), Windows 8.1 (32/64 bit),
Windows 10 (32/64 bit), Windows Server 2008 R2,
(32/64 bit), Windows Server 2012 (64 bit), Windows
Server 2012 R2 (64 bit), Windows Server 2016 (64 bit),
Macintosh OS X v10.10.5-v10.12 X
Power Consumption Maximum
107W or Less
3.6W or Less
Power Off
0.3W or Less
What's Included
  • Canon imagePROGRAF TX-4000
  • Sold as-is
  • No warranty
Accessories Multifunction Roll System
2"/3" Roll Holder Set
Supplies Ink Tank (PFI-110/PFI-310/PFI-710)
Print Head (PF-06)
Maintenance Cartridge (MC-30)
Cutter Blade (CT-07)
  • Handling Time: 3-5 business days
  • Delivery Time: 7-14 business days

All shipments are insured and trackable. Local pickup is available upon request. We are located in Corona, Riverside County, CA.

If you prefer your shipment to be palletized and crated, we offer this service at an additional charge. Please contact us for arrangements.


Canon imagePROGRAF TX-4000, imagePROGRAF TX-4000, TX 4000, 4000
