HP DesignJet T3500 36-inch 2 Roll Color Inkjet Wide Format Printer

  • Sale
  • Our price $6,000.00

Shopify secure badge

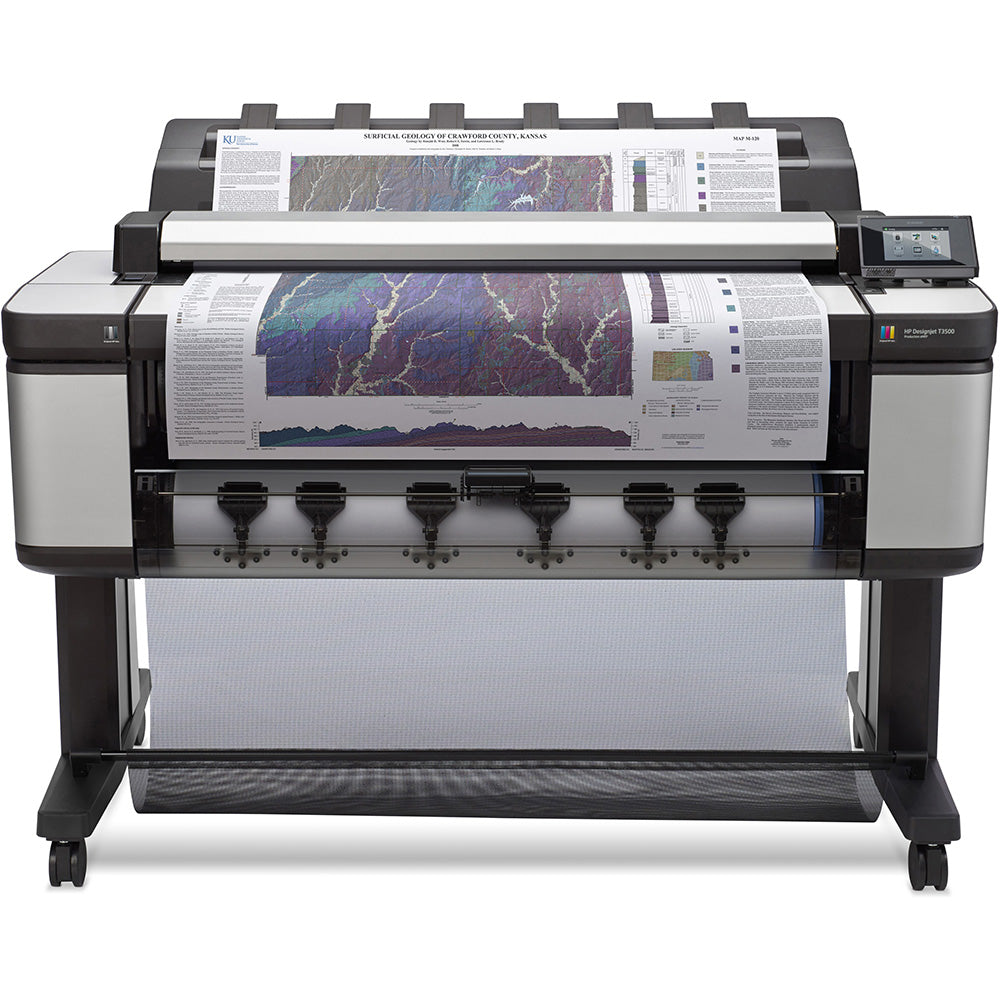

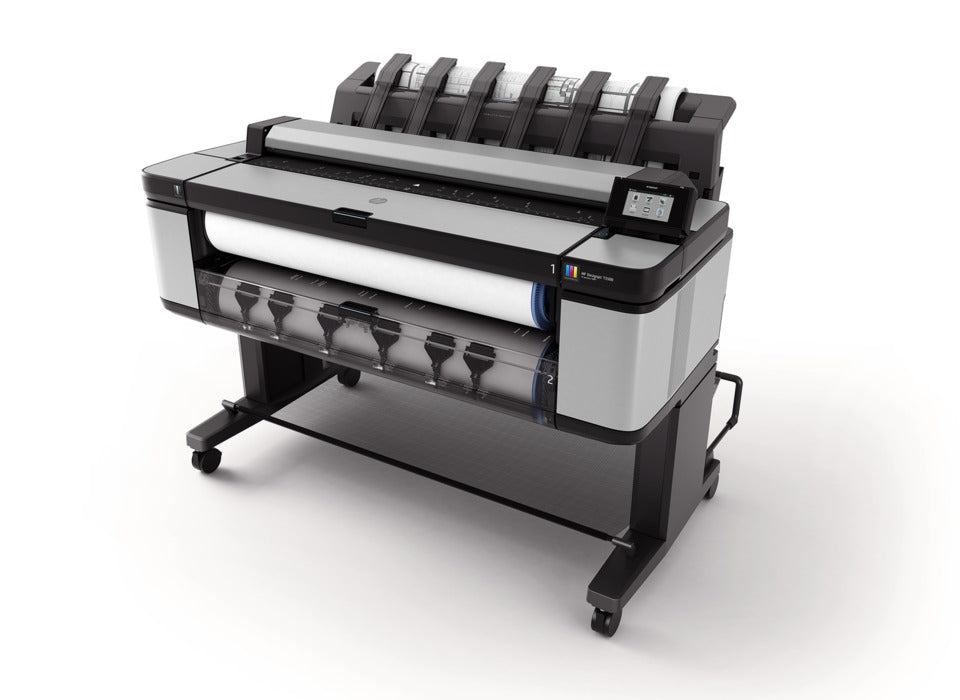

HP DesignJet T3500 36-inch 2 Roll Color Inkjet Wide Format Printer

The HP DesignJet T3500 is a 36-inch 2 roll color wide format printer that delivers all your workflow needs in a high productivity MFP for unattended, low-cost use. It is designed for high volume printing, and relies on its robust design to fulfill the most demanding print jobs, The HP DesignJet T3500 allows users to manage projects and control costs effectively, using its embedded professional accounting features.

The HP DesignJet T3500 prints D/A1 size pages in 21 seconds with dark blacks, neutral grays, and vivid colors. It can print out its first page right away thanks to its ultra-fast processing and zero warm-up time. Last but not least, it is built for rigorous IT demands and top security with its a self-encrypting HDD with AES-256, Secure Disk Erase, and IPsec.

download brochure

Configuration Printer (Optional Scanner)
Print Technology HP Thermal Inkjet
Print Speed 21 sec/page on A1/D, 120 A1/D prints per hour
Maximum Resolution up to 2400 x 1200 optimized dpi
Memory Intel Core i5M-260 processor, 128 GB (virtual),6 500 GB hard disk (AES-256 encrypted, FIPS 140-2 Level 2 certified)
Media Handling:
Input: two automatic front-loading roll feeds; smart roll switching; rolls up to 200 m (650 ft) long each and 180 mm (7.1 in) of diameter; sheet feed
Output: integrated output stacker (from A4/A to AO/E, with up to 100 A1/D-size capacity); media bin; automatic cutter

Rolls: 11" to 36" in.
Sheets: 8.3" x 11" in. to 36" x 48" in.
Standard sheets: A4, A3, A2, A1, A0 (A, B, C, D, E)

Thickness: up to 19.7 mil
Print Margins (top x bottom x left x right):
Roll: 0.12 x 0.12 x 0.12 x 0.12 in. (borderless on photo papers)
Sheet: 0.12 x 0.87 x 0.12 x 0.12 in.

Ink types: Dye-based (C, G, M, pK, Y); pigment-based (mK)

Ink cartridges: 6 (cyan, gray, magenta, matte black, photo black, yellow)

Line accuracy: +/- 0.1%4

Minimum line width: 0.0008 in) (HP-GL/2 addressable)

Guaranteed minimum linewidth: 0.0028 in. (ISO/IEC 13660:2001(E))
Scan (Optional) Scan Speed Color: up to 2.5 in./sec

Grayscale: up to 7.5 in./sec

Scan/copy resolution: up to 600 dpi

Maximum Scan Size:
36" x 315" in. (JPEG)
36" x 197" in. (PDF)
24" x 590.5" in. (TIFF)
Copy (Optional) Thickness: up to 0.03 in.

Reduction/enlargement: 25 to 400%; at 1% increment

Maximum copies: up to 99 copies

Copier settings: Copy quality, copy color, roll, paper output, content type, original paper type, background removal, contrast, de-skew, blueprints support, copy margin layout, full width, job queue storage mode
Applications Line drawings, Renderings, Presentations, Maps, Orthophotos
Connectivity Interfaces (standard): High-Speed USB 2.0 certified host connector Gigabit Ethernet (1000Base-T), supporting the following standards: TCP/IP, BootP/DHCP (IPv4 only), DHCPv6, TFTP (IPv4o only), SNMP (v1, v2c, v3), Apple Bonjour Compatible, FTP, WS Discovery, Embedded Web Server(HTTP,
HTTPs), IPSec, SMTP (e-mail), Raw IP printing (9100, 9101, 9102), LPD, IPP, WS print, NTLM, NTLM v2, SSL/TLS, 802.1X authentication (WEP, WPA, WPA2, LEAP, PEAP, EAP-TLS)

Print languages (standard): HP-GL/2, HP-RTL, TIFF, JPEG, CALS G4, HP PCL 3 GUI

Print languages (optional): Adobe PostScript 3; Adobe PDF 1.7

Printing paths: HP Designjet SmartStream (optional), Printer driver, HP Embedded Web Server, direct printing from USB flash drive, email printing

Drivers (included): HP-GL/2, HP-RTL drivers for Windows; HP PCL 3 GUI driver for Mac OS X; PostScript Windows and Mac drivers with optional PostScript/PDF Upgrade Kit. Compatible with HP Designjet Universal Print Driver for HP-GL/2 and HP Designjet Universal Print Driver for PS (with PostScript/PDF Upgrade Kit)
Dimension (W x D x H) / Weight 55.1 x 30.9 x 43.7 in. / 251 lbs.
What's Included
  • HP DesignJet T3500 MFP (36" inch)
  • Sold as-is
  • No warranty
Accessories C0C66A HP Designjet PostScript/PDF Upgrade Kit
G8B09A HP Designjet T3500 36-in Spindle
E2P02A HP SmartStream Preflight Manager for HP Designjet
E2W16A HP SmartStream Print Controller for HP Designjet T3500 Production eMFP
Supplies C1Q13A HP 764 300-ml Cyan Designjet Ink Cartridge
C1Q14A HP 764 300-ml Magenta Designjet Ink Cartridge
C1Q15A HP 764 300-ml Yellow Designjet Ink Cartridge
C1Q16A HP 764 300-ml Matte Black Designjet Ink Cartridge
C1Q17A HP 764 300-ml Photo Black Designjet Ink Cartridge
C1Q18A HP 764 300-ml Gray Designjet Ink Cartridge
  • Handling Time: 3-5 business days
  • Delivery Time: 7-14 business days

All shipments are insured and trackable. Local pickup is available upon request. We are located in Corona, Riverside County, CA.

If you prefer your shipment to be palletized and crated, we offer this service at an additional charge. Please contact us for arrangements.


HP DesignJet T3500, DesignJet T3500, 3500
