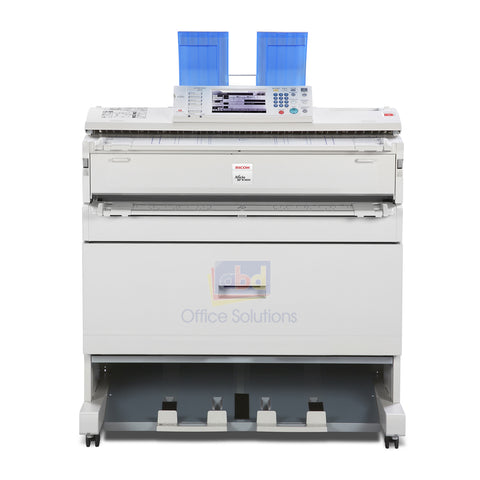

SpecificationsRicoh Aficio MP W3601 Mono Wide Format Copier
The Ricoh Aficio MP W3601 Mono Wide Format Copier provide the dream combination: affordable wide-format document production in a compact footprint. You can securely copy distribute and archive with one surprisingly compact unit. With speed of 6.4 A1 pages per minute, this device offers productivity improvements for the busy office. You can process a variety of paper sizes from A4 up to A0: opt for the two roll configuration or the additional 250-sheet paper cassette (up to A3).
The Ricoh Aficio MP W3601 can capture marked-up changes in the field and direct them to designers, eliminating time-consuming mail or expensive courier delivery with its built-in color scanner. Improve your workflow by scanning directly to email, SMB, folder, FTP, URL, NCP, and document server.
|Copy/Printing Process||Electro-photographic printing|
|Copying Speed||6.4 ppm (D-Size)|
|First Copy Out||18 seconds (D-Size)|
|Paper Source||1 roll paper feeder
1 drawer paper cassette tray (optional)
|Warm-Up Time||Less than 120 Seconds|
|Original/Copy Size||Maximum: 36" x 590" in.
Minimum: 8.3" x 8.3" in.
Bypass: 36"x 78" in.
|Grayscale Scanning||256 levels|
|Color Scanning||16.7 million colors (256 RGB levels)|
|Grayscale Printing||2 levels|
|Cutting Method||Synchronized, preset cut, variable cut|
|Memory Capacity||1024 MB (Copy/Printer)
|Standard Hard Drive||160 GB|
|Output||Top: 50 sheets @ A1/D SEF (plain paper) (larger than A1/D size cannot be
Bottom: 40 sheets @ A0/E SEF (plain
Original Paper Weight 5.6 – 41.8 lb.
Output Paper Weight Paper roll:
Plain paper: 13.9 – 29.3 lb.
Translucent paper: 76 – 110 g/m2
Vellum: 27.8 lb. – 50.2 lb.
Maximum Thickness: .04" in.
|Power Source/Consumption||120V 15A 60Hz / Less than 1,440W|
|Dimension/Weight||42.5" x 25" x 22.8" / 236 lbs.|
|Copier Features||Auto Paper Select, Auto Reduce/Enlarge, Combine Copy, Copy to Document Server, Drawing Mode Selection, Electronic Sort, Image Overlay, Job Interrupt, User Reduce/Enlarge, Paper Remaining Level, Stamp Settings|
|Print Controller Features||Auto Paper Select, Border Setting, Build Jobs Sets from Multiple File Formats (Webprinttool)
Collate, Combine Images, Cut Mode, Limitless Paper Feed, Locked Print, Magnification, Mirror Setting, Media Selection, Output Tray Selection, Paper Remaining Level, Pen Settings, Reduce/Enlarge, Sample Print Setting, Set X and Y Axis, Stamp Settings, Transparency Mode
|Supported Operating System||Windows 2000/XP/2003 Server/Vista/2008 Server/Windows 7
Mac OS X (later than Mac OS X10.2
- Ricoh Aficio MP W3601
- As-is level of consumables
- Power cord
- No warranty
|Optional accessories||Paper Cassette Tray Option (cut sheet)|
- Standard Shipping: $500.00
- Processing Time: 1-2 business days
- Handling Time: 3-5 business days
- Delivery Time: 7-14 business days
All shipments are insured and trackable. Local pickup is available upon request. We are located in Corona, Riverside County, CA.
If you prefer your shipment to be palletized and crated, we offer this service at an additional charge. Please contact us for arrangements.
Ricoh Aficio MP W3601, Aficio MP W3601 3601
