Xerox Two-Sided Trimmer Module (1AE)

  • Sale
  • $5,500.00
  • Our price $7,000.00

Shopify secure badge


Specifications

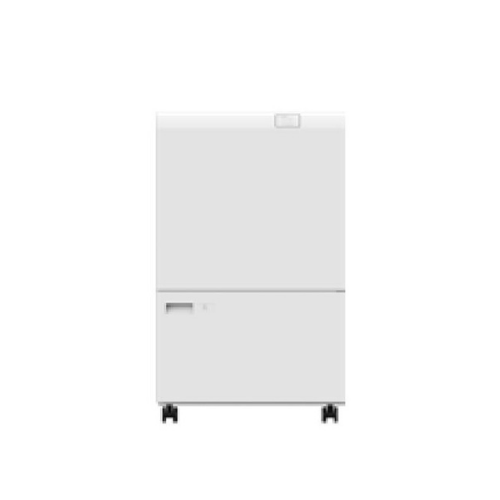

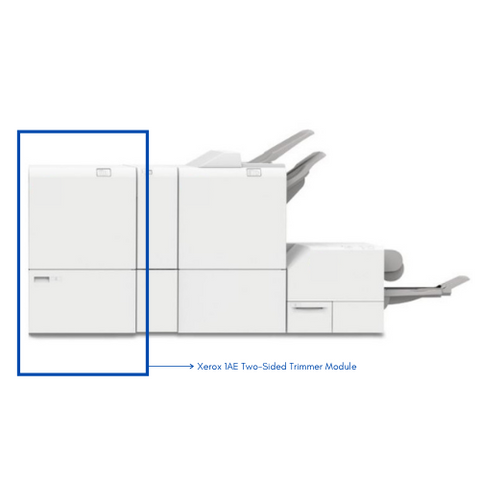

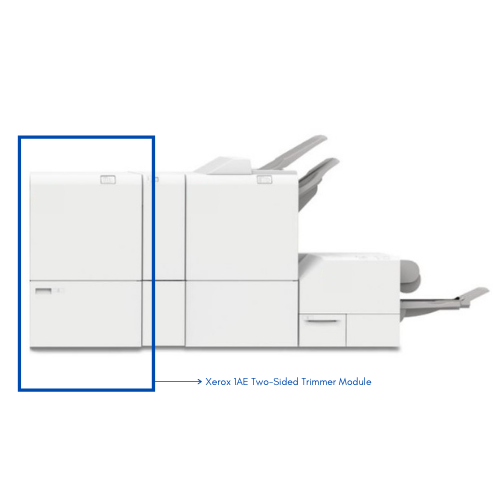

Xerox Two-Sided Trimmer Module for Versant 180/3100 (1AE)

The Xerox Two-Sided Trimmer Module 1AE is an optional finishing accessory for Xerox Versant 180 and Xerox Versant 3100. It trims the and foot of a sheet up to 0.985" (25 mm) with a minimum trim of 0.236" (6 mm) using standard or custom sizes (maximum 13 x 19.2"/330 x 488 mm to minimum 7.7 x 8.3"/194 x 210 mm) on uncoated and coated stocks up to 350 gsm.

Notes:

  • This trimmer is used in combination with the Production Ready Finisher and Booklet Maker. These are optional and are not included in the sale.
  • This must only be installed by a qualified technician. We are not responsible for any damage caused by improper DIY installation and assembly or improper use.
  • This unit comes with a 30-day parts warranty under normal operating conditions. Parts that are defective or damaged will be replaced. Please keep in mind that the warranty will be void in the event of misuse, parts damaged during installation by someone other than a qualified technician, or after the warranty period has expired.
Product code Xerox 1AE, 1AE
For Xerox machines Xerox Versant 180
Xerox Versant 3100
Condition Used
Function
- Trims 0.24–0.98 in. (6–25 mm) off head and
foot of sheets (inboard and outboard edges)
- Provides full bleed trim for booklets when
used with the Xerox® SquareFold® Trimmer
Paper size
For 2-Sided Sheet Trim:
Minimum: 7.64 x 8.27 in. (194 x 210 mm)
Maximum: 13 x 19.21 in. (330.2 x 488 mm)

For 2-Sided Booklet Trim:
Minimum: 7.64 x 10.12 in. (194 x 257 mm)
Maximum: 13 x 19.21 in. (330.2 x 488 mm)
Paper weight
Uncoated: 52–350 gsm
Coated: 60–350 gsm
Power Requirements
- 100–240 VAC
- 60/50 Hz
- kVA Rating: 0.1 kVA
Dimension/Weight 23.81" x 28.5" x 39.05" in / 518 lb
Shipping
  • Handling Time: 5-7 business days
  • Delivery: 7-10 business days

All orders weighing less than 70 pounds will be shipped via UPS or other shipping services. Any items over this weight limit will be shipped via LTL Freight or common carrier at the discretion of ABD Office Solutions.

All shipments will include tracking information as well as insurance for the full purchase price.

For freight shipments, the transit time is between 7-10 business days after the package has been processed and shipped. You will receive a shipment confirmation message once your order has shipped, containing your tracking number. Standard delivery is up to the curbside only; Residential, inside, or remote delivery requests will incur additional shipping charges. If this occurs prior to shipping, we will notify you. The additional fees will be quoted to you before we book your shipment.

Warehouse pick-up is available by appointment for local customers within 30 miles of our office. We are located in Corona in Riverside County, CA.

Tags
Xerox 1AE, 1AE
Xerox Two Sided Trimmer Module
Xerox Versant 180 Press
Xerox Versant 3100 Press
