Xerox 6AE Integrated Squarefold Trimmer

  • Sale
  • $3,500.00
  • Our price $4,000.00

Shopify secure badge


Specifications

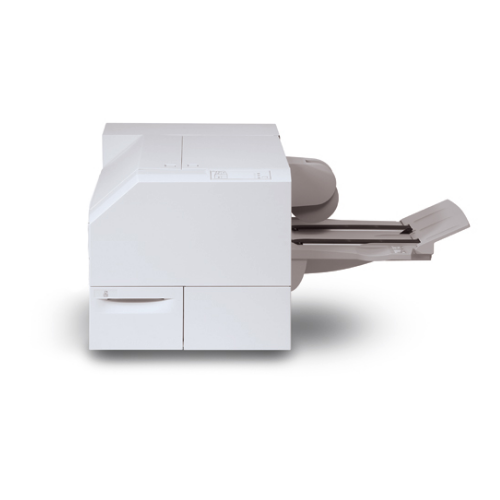

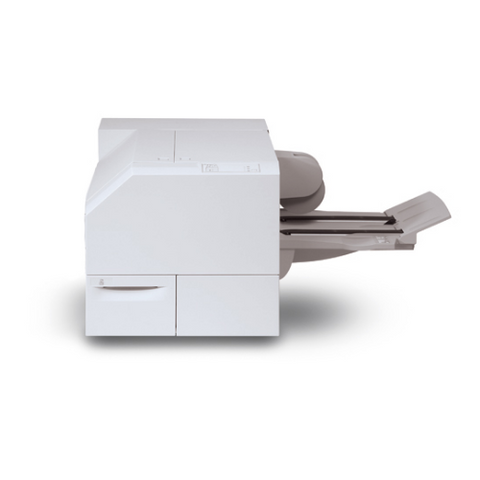

Xerox 6AE Integrated Squarefold Trimmer

The Xerox 6AE Integrated Squarefold Trimmer is an optional accessory for Xerox Versant 180 and Xerox Versant 3100. It creates flat finished booklets with the appearance of bound book-like edge; eliminate shingle effect with professional face trim up to 120 pages (30 sheets).

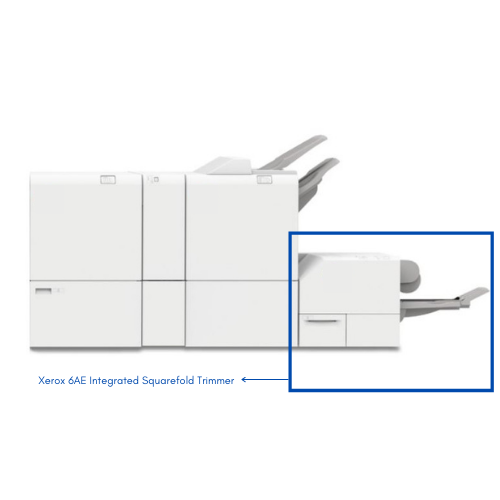

This unit is used with the Two-Sided Trimmer for finished full bleed booklets. It works with the Xerox Production Ready Booklet Maker Finisher.

This is a used unit. No warranty.

Product code Xerox 6AE, 6AE
For Xerox machines Xerox Versant 180
Xerox Versant 3100
Condition Used
Function
- Receives booklets from the booklet maker area of the finisher and flattens the booklet spine and creases the cover, thereby reducing the booklet’s thickness and giving it the appearance of a perfect-bound book
- Trims 2–20 mm from the fore edge of the booklet, resulting in a neat finished edge
Paper size
Minimum: 7.17 x 10.12 in. (182 x 257 mm)
Maximum: 13 x 19.21 in. (330 x 488 mm)
Paper weight
Uncoated: 60–350 gsm
Coated: 60–350 gsm
Power Requirements
- 100–240 VAC
- 60/50 Hz
- kVA Rating: 0.1 kVA
Dimension/Weight 50.4" x 28.5" x 21.73" in / 209 lb
Shipping
  • Handling Time: 3-5 business days
  • Delivery Time: 7-14 business days

All shipments are insured and trackable. Local pickup is available upon request. We are located in Corona, Riverside County, CA.

If you prefer your shipment to be palletized and crated, we offer this service at an additional charge. Please contact us for arrangements.
