Canon imagePROGRAF TX-3000 36-inch Inkjet Wide-Format Printer - Brand New

Shopify secure badge

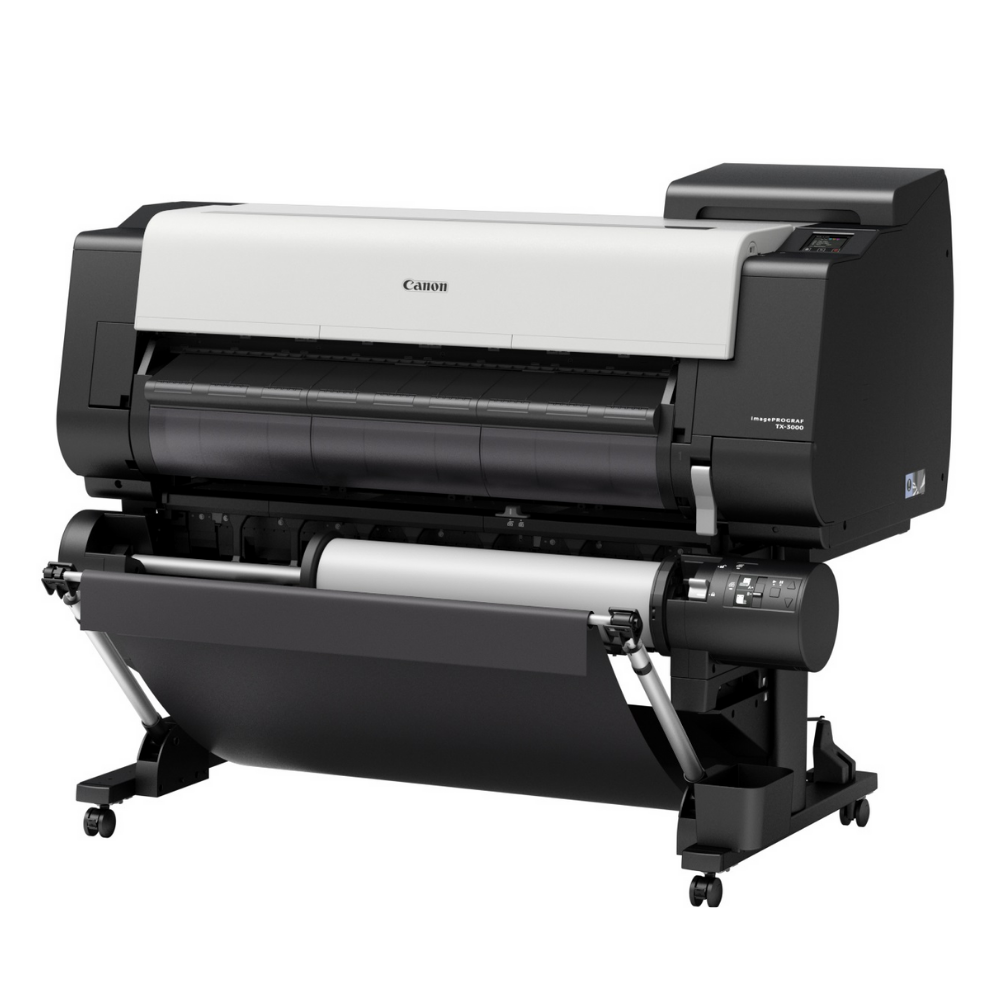

Canon imagePROGRAF TX-3000 36-inch Inkjet Wide-Format Printer - Brand New

The Canon imagePROGRAF TX-3000 36-inch Inkjet Wide-Format Printer is equipped to deliver the diverse needs of architects, construction, engineers, GIS and other professionals. The Canon imagePROGRAF TX-3000 has printing speeds as fast as approximately 3 D-sized drawings a minute, wireless printing capability, automatic roll loading, stacking of up to 100 sheets, and an optional Multifunction Roll Unit.

The Canon imagePROGRAF TX-3000 also offers greater productivity, usability, and document access control sought in the CAD industry.

download brochure

Brand New
Configuration Standard: Printer

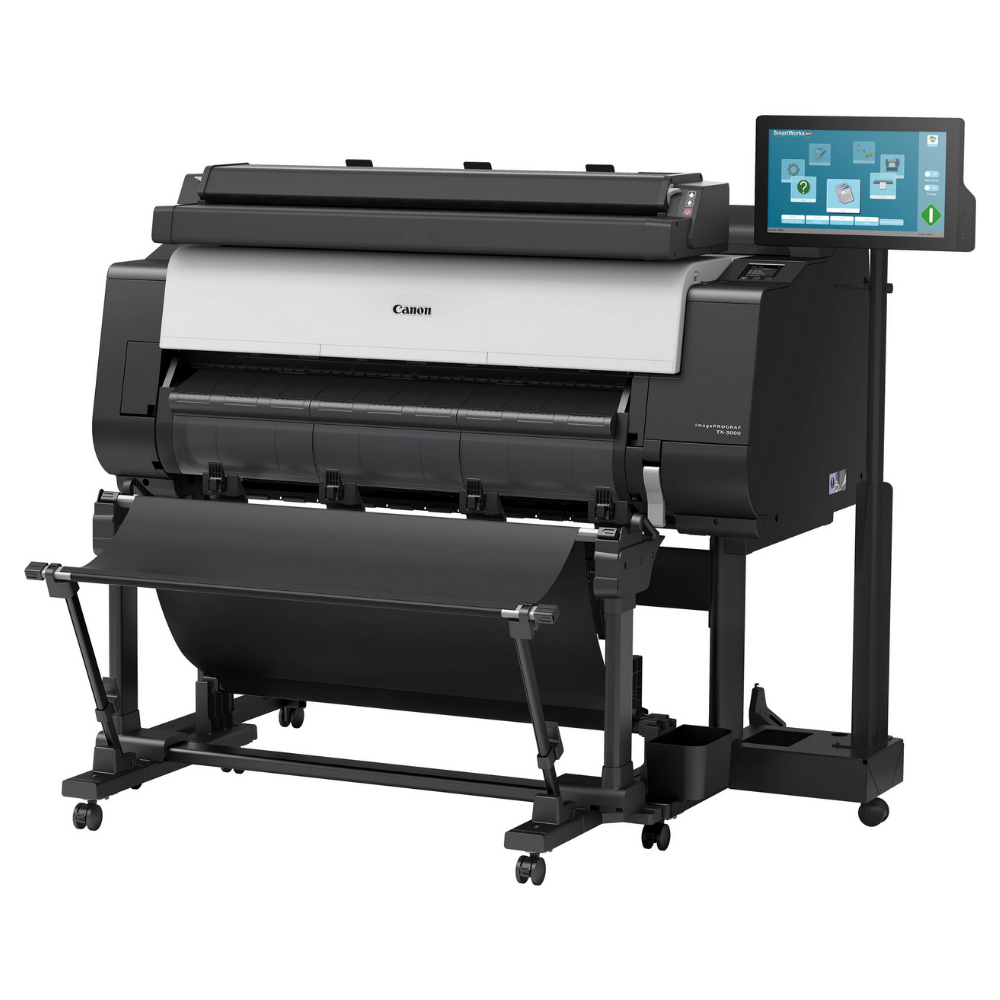

Optional: Scanner
Print Speed CAD Drawing - Plain Paper (A0 Roll)
0:37 (Fast Economy Mode)
0:40 (Fast)
1:10 (Standard)

Poster - Plain Paper (A0 Roll)
0:42 (Fast Economy mode)
0:42 (Fast)
1:26 (Standard)

Poster - Heavy coated Paper (A0 Roll)
1:43 (Fast)
2:37 (Standard)
Image Quality Print Resolution (Max.): 2400 x 1200 dpi
Media Media Width
Cut Sheet: 8 - 36 in.
Roll Feed: 8 - 36 in.

Max. Roll Print Length
Roll Feed: 59 ft.

Max. Media Roll Diameter
6.7 in.

Borderless Printing Width
8”, 10", 12”, 14", 16” 17", 20”, 24", 30”, 36" B4, A3, A3+, A2, B2, A1, B1, A0

Paper-Feed Method
Roll Feed: One Roll, Front-loading, Front Output Front Loading
Manual Feed: One Roll, Front Output
Print Technology Technology
FINE (Photolithography Inkjet Nozzle Engineering)

Line Accuracy
±0.1% or Less

Number of Nozzles
Matte Black: 5,120 Nozzles
Other Colors: 2,560 Nozzles per Color

Droplet Size
5 Picoliter

Nozzle Pitch (Head Resolution)
1200 dpi x Two Rows

Print Head Swath
1.07 inch

Ink Type
Pigment: Matte Black (MBK), Cyan (C), Magenta (M),
Yellow (Y), Black (BK)

Ink Tank
Shipped with Printer: PFI-310 (330 ml) MBK;
PFI-110 (160 ml) BK, C, M, Y
Replacement: PFI-110 (160 ml), PFI-310 (330 ml),
or PFI-710 (700 ml)

Ink Supply Method
Tubing System with Sub-tanks for Continuous Ink Supply

Nozzle Recovery System
Non-firing Nozzle Detection and Compensation

Printer Controller

Print Language
Printer RAM Printer RAM: 128 GB (Virtual), 2 GB (Physical)
Hard Drive: 500 GB
Connectivity Standard (Built-in): USB 2.0 Hi-Speed, 10/100/
1000Base-T/TX, Wireless LAN (IEEE 802.11 b/g /n)
Direct USB Thumb Drive Printing
Dimensions / Weight 46" x 54.7" x 46.8" / Approx. 257 lb.
O.S. Compatibility Windows 7 (32/64 bit), Windows 8.1 (32/64 bit),
Windows 10 (32/64 bit), Windows Server 2008 R2,
(32/64 bit), Windows Server 2012 (64 bit), Windows
Server 2012 R2 (64 bit), Windows Server 2016 (64 bit),
Macintosh OS X v10.10.5-v10.12x
Power Consumption Maximum: 105 W or Less
Standby: 3.6 W or Less
Power Off: 0.3 W or Less (Executive Order Compliant)
Related Products Canon imagePROGRAF TX-4000
Accessories Canon T36 Scanner with Power Cord and USB 3.0 Cable
Multifunction Roll System (RU-32)
2"/3" Roll Holder Set (RH2-34)
Supplies Ink Tank (PFI-110/PFI-310/PFI-710)
Print Head (PF-06)
Maintenance Cartridge (MC-30)
Cutter Blade (CT-07)
  • Handling Time: 3-5 business days
  • Delivery Time: 7-14 business days

All shipments are insured and trackable. Local pickup is available upon request. We are located in Corona, Riverside County, CA.

If you prefer your shipment to be palletized and crated, we offer this service at an additional charge. Please contact us for arrangements.
