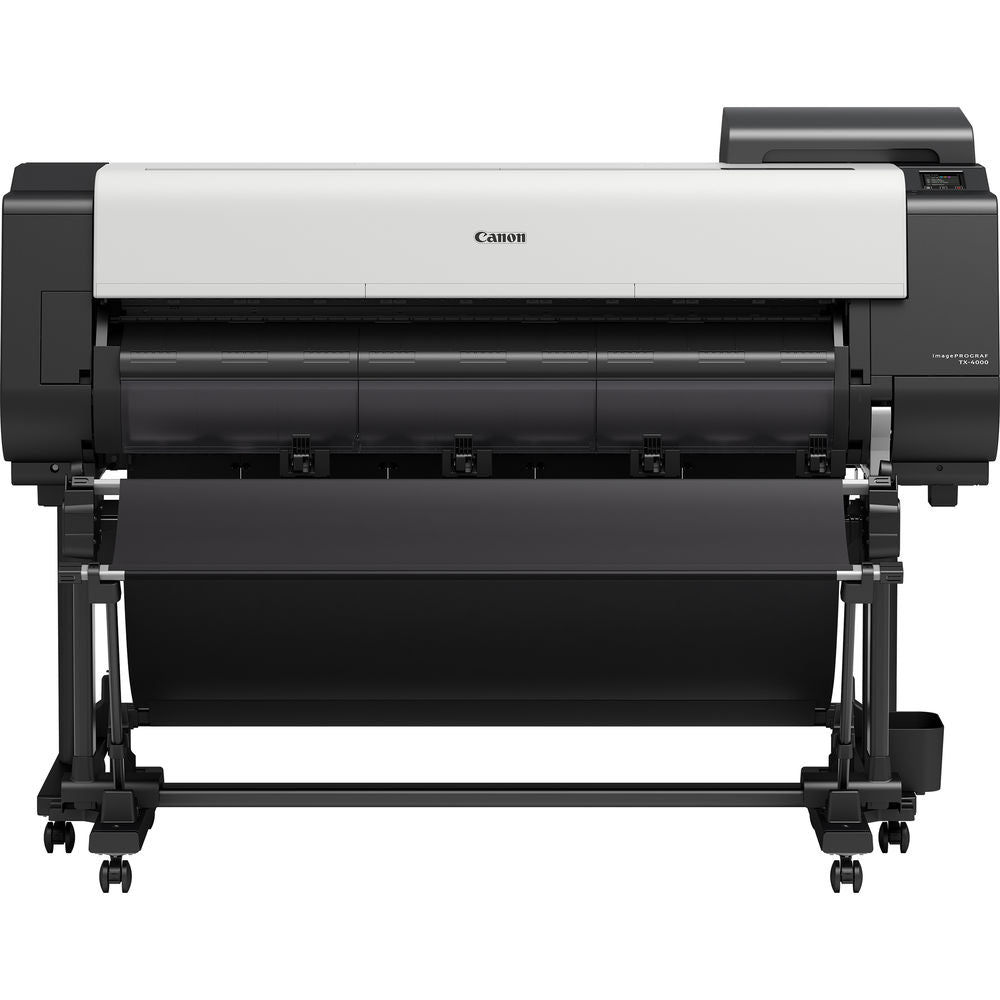

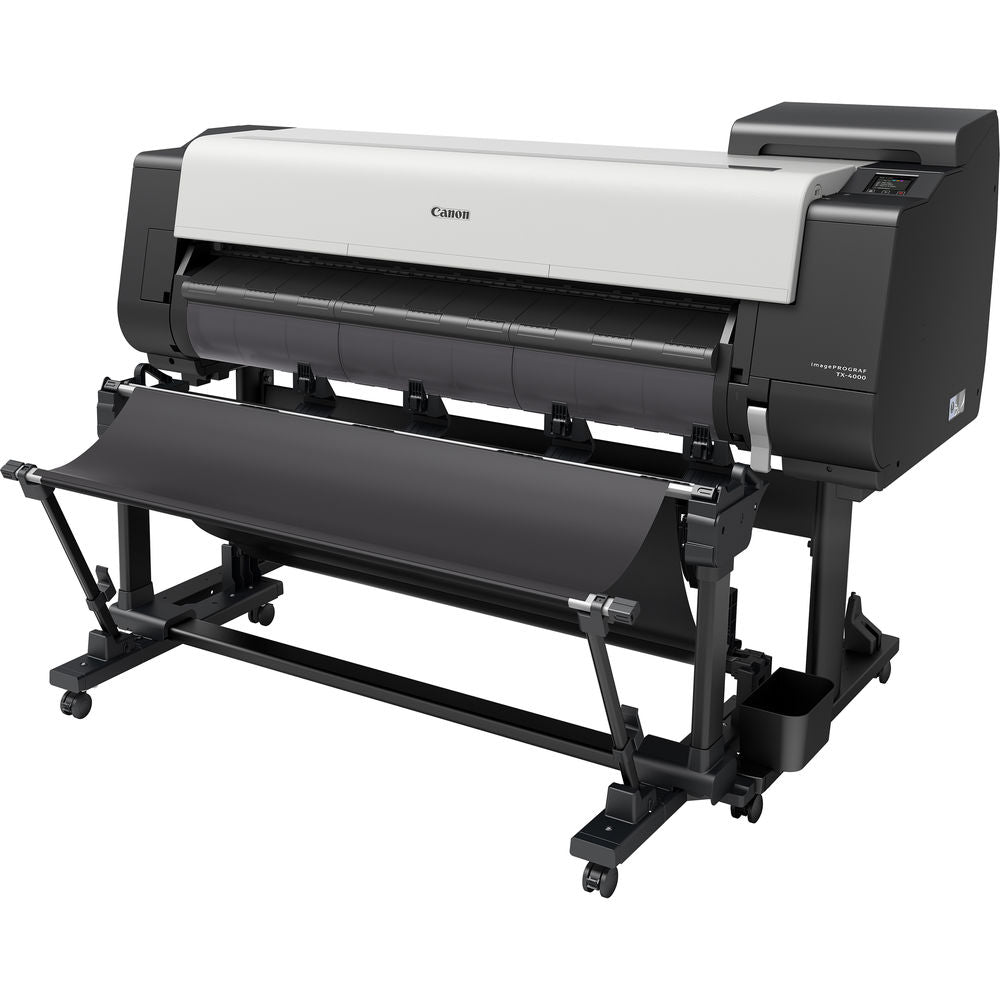

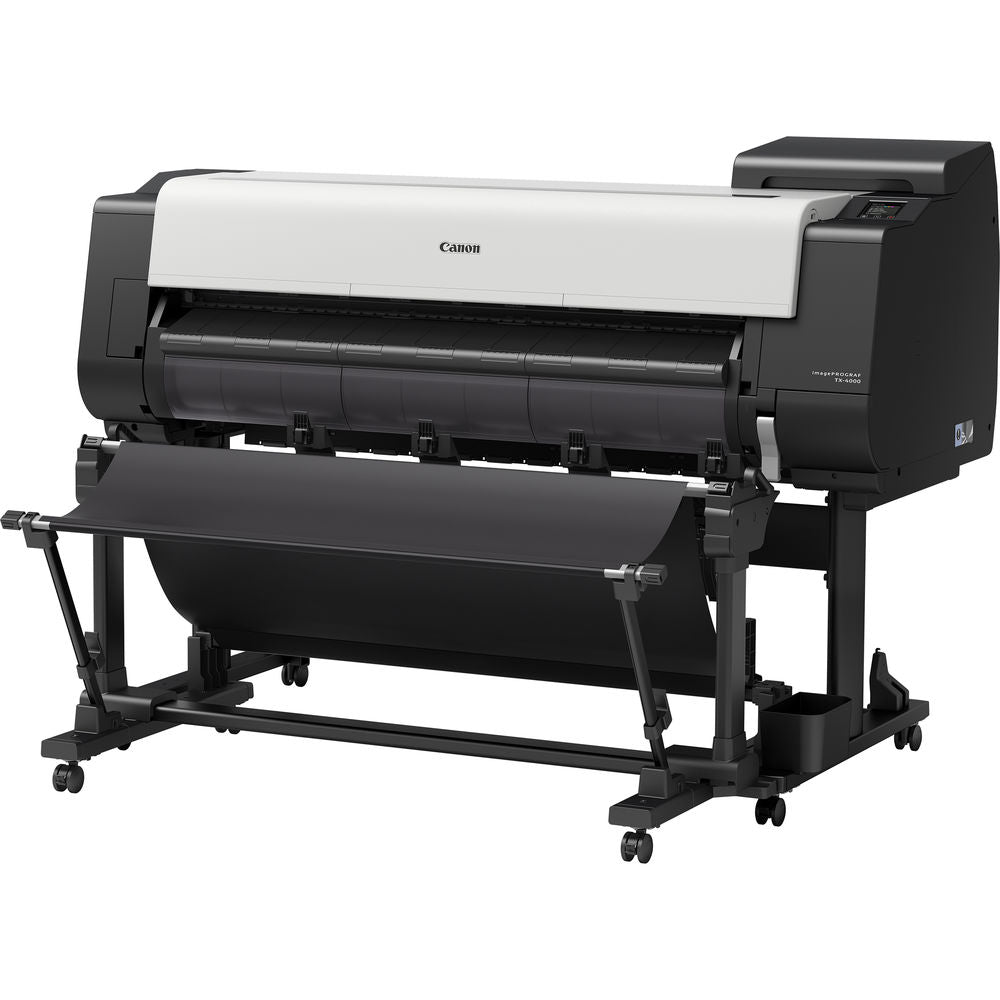

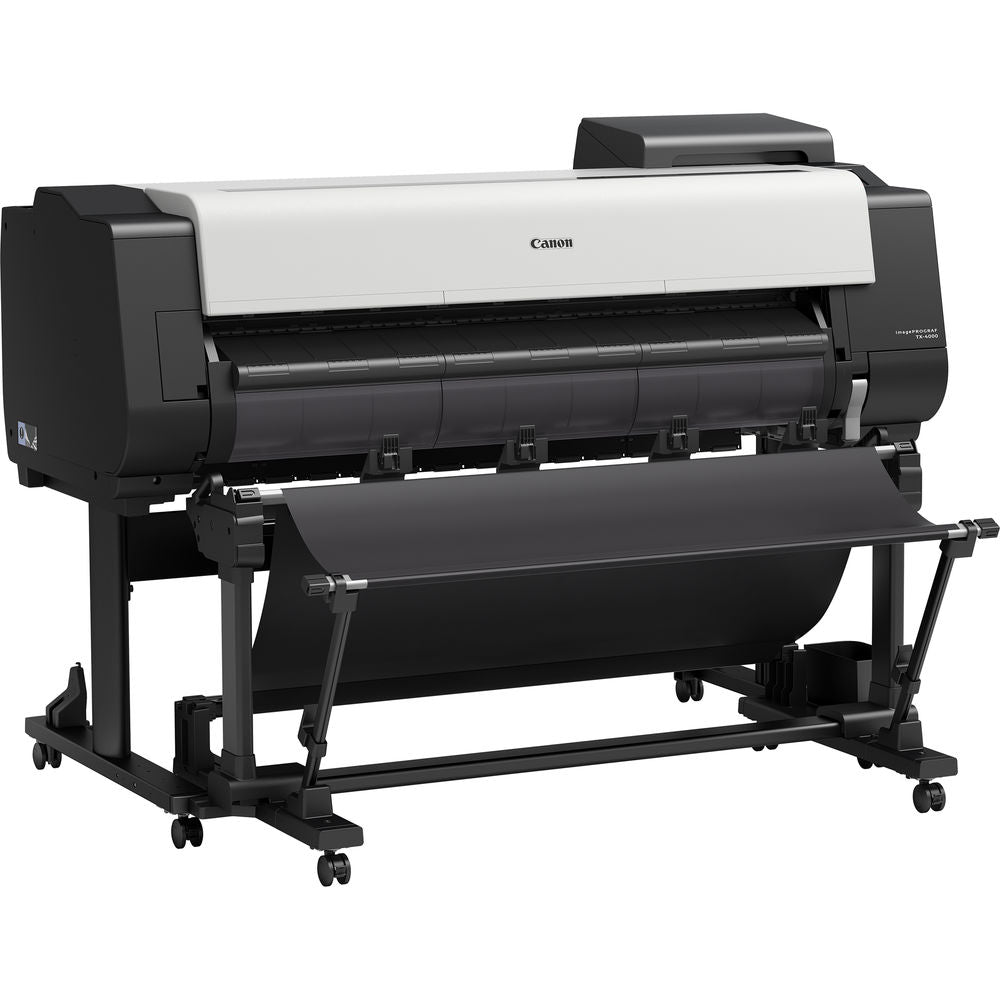

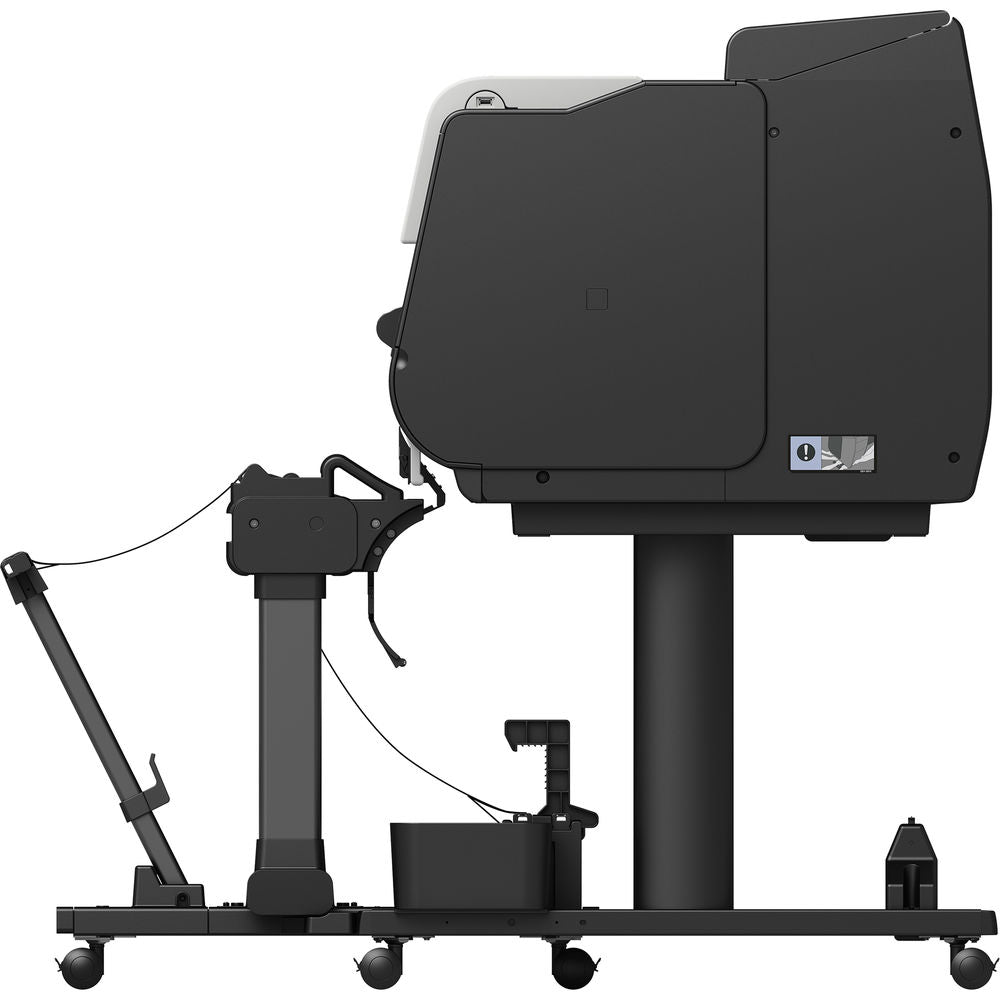

Canon imagePROGRAF TX-4000 44-inch Large Format Printer - Brand New

Shopify secure badge

Canon imagePROGRAF TX-4000 44-inch Large Format Printer - Brand New

The Canon imagePROGRAF TX-4000 44-inch Large Format Printer is equipped to deliver the diverse needs of architects, construction, engineers, GIS and other professionals. The Canon imagePROGRAF TX-4000 has printing speeds as fast as approximately 3 D-sized drawings a minute, wireless printing capability, automatic roll loading, stacking of up to 100 sheets, and an optional Multifunction Roll Unit.

The Canon imagePROGRAF TX-4000 also offers greater productivity, usability, and document access control sought in the CAD industry.

download brochure

Brand New
Configuration Standard: Printer
Optional: Scanner
Print Speed CAD Drawing - Plain Paper (A0 Roll)
0:37 (Fast Economy Mode)
0:40 (Fast)
1:10 (Standard)

Poster - Plain Paper (A0 Roll)
0:42 (Fast Economy mode)
0:42 (Fast)
1:26 (Standard)

Poster - Heavy coated Paper (A0 Roll)
1:43 (Fast)
2:37 (Standard)
Image Quality Print Resolution (Max.): 2400 x 1200 dpi
Media Media Width:
Cut Sheet: 8"- 44"
Roll Feed: 8" - 44"

Max. Roll Print Length:
Roll Feed - 59 ft.

Max. Media Roll Diameter:
6.7" in.

Borderless Printing Width (Roll Media Only):
8”, 10", 12”, 14", 16” 17", 20”, 24", 30”, 36", 42”, 44” B4, A3, A3+, A2, B2, A1, B1, A0, B0

Paper Feed Method:
Roll Feed: One Roll, Front-loading, Front Output Front Loading Manual Feed: One Roll, Front Output
Print Technology Technology
FINE (Photolithography Inkjet Nozzle Engineering)

Line Accuracy
±0.1% or Less

Number of Nozzles
Matte Black: 5,120 Nozzles
Other Colors: 2,560 Nozzles per Color

Droplet Size
5 Picoliter

Nozzle Pitch (Head Resolution)
1200 dpi x Two Rows

Print Head Swath
1.07 inch

Ink Type
Pigment: Matte Black (MBK), Cyan (C), Magenta (M),
Yellow (Y), Black (BK)

Ink Tank
Shipped with Printer: PFI-310 (330 ml) MBK;
PFI-110 (160 ml) BK, C, M, Y
Replacement: PFI-110 (160 ml), PFI-310 (330 ml),
or PFI-710 (700 ml)

Ink Supply Method
Tubing System with Sub-tanks for Continuous Ink Supply

Nozzle Recovery System
Non-firing Nozzle Detection and Compensation

Printer Controller

Print Language
Printer RAM Printer RAM: 128 GB (Virtual), 2 GB (Physical)
Hard Drive: 500 GB
Connectivity Standard (Built-in): USB 2.0 Hi-Speed, 10/100/
1000Base-T/TX, Wireless LAN (IEEE 802.11 b/g /n)
Direct USB Thumb Drive Printing
Dimensions / Weight 46.0" x 54.7" x 46.8" Approx. 257 lb. (With Stacker Opened)
O.S. Compatibility Windows 7 (32/64 bit), Windows 8.1 (32/64 bit),
Windows 10 (32/64 bit), Windows Server 2008 R2,
(32/64 bit), Windows Server 2012 (64 bit), Windows
Server 2012 R2 (64 bit), Windows Server 2016 (64 bit),
Macintosh OS X v10.10.5-v10.12x
Power Consumption Maximum: 105 W or Less
Standby: 3.6 W or Less
Power Off: 0.3 W or Less (Executive Order Compliant)
Related Products Canon imagePROGRAF TX-3000
Accessories Canon T36 Scanner with Power Cord and USB 3.0 Cable
Multifunction Roll System (RU-42)
2"/3" Roll Holder Set (RH2-34)
Supplies Ink Tank (PFI-110/PFI-310/PFI-710)
Print Head (PF-06)
Maintenance Cartridge (MC-30)
Cutter Blade (CT-07)

Free local delivery can be arranged within 10 to 15 miles from Corona, CA 92880.

  • Standard Shipping: $500.00
  • Handling Time: 3-5 business days
  • Delivery: 5-7 business days

* Free warehouse pickup is available for those in the Corona, CA area.
